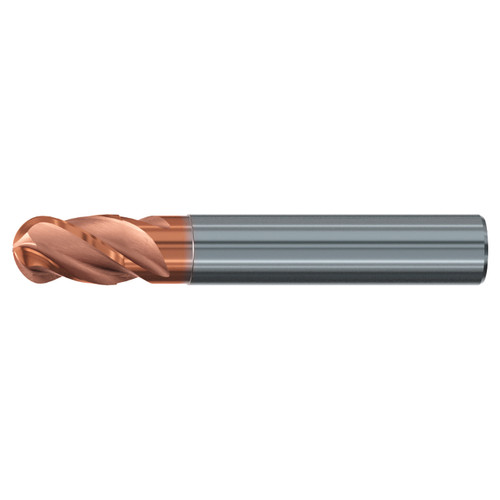

Emuge 3840A.004 | 4.00mm Diameter x 54.00mm OAL 4 Flute TIALN Coated Ball End Mill

$54.92 $50.86
(You save $4.06)
Brand:
Emuge
Mill Diameter (Inch):
5/32"
Mill Diameter (Decimal Inch):
0.1575"
Mill Diameter (mm):
4.00mm
Number of Flutes:
4
Overall Length (Inch):
2-1/8"
Overall Length (Decimal Inch):
2.1259"
Overall Length (mm):
54.00mm
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Finish/Coating:
TiAlN
Helix Angle:
30 Degree
Flute Direction:
Right Hand
Application:
Finishing
interval quantity:
1
SKU:
25235845
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Emuge 3840A.004 | 4.00mm Diameter x 54.00mm OAL 4 Flute TIALN Coated Ball End Mill

Features:

  • TOP-Cut VAR carbide ball nose end mill for universal roughing and finishing applications in many materials
  • Low-vibration machining due to variable helix flute spacing
  • For universal use, suitable for high speed finishing
  • ALCR coating for longer tool life and very good suitability for high-alloyed materials

Product Specifications
Manufacturer Part Number3840A.004
Cutting Diameter (Decimal Inch)0.157"
Cutting Diameter (mm)4.00mm
Overall Length (mm)54.00mm
Flute Length (mm)8.00mm
Shank Toleranceh5
Tool Cylindrical - Shank StyleCylindrical - HA
Shank StandardDIN 6535
Flute DirectionRight Hand
Group LengthStub Length
Coolant Supply PropertyExternal
Coolant FedNo
Number of Flute4
Flute Helix Angle (Degree)30 Degree
Cutting Edge MaterialCarbide
CoatingTIALN
Tool TypeBall Nose
End Mill - End StyleBallnose End Mills
End ShapeBall
ApplicationFinishing
Product TypeBall End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Emuge
Mill Diameter (Inch):
5/32"
Mill Diameter (Decimal Inch):
0.1575"
Mill Diameter (mm):
4.00mm
Number of Flutes:
4
Overall Length (Inch):
2-1/8"
Overall Length (Decimal Inch):
2.1259"
Overall Length (mm):
54.00mm
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Finish/Coating:
TiAlN
Helix Angle:
30 Degree
Flute Direction:
Right Hand
Application:
Finishing
interval quantity:
1
