Features:

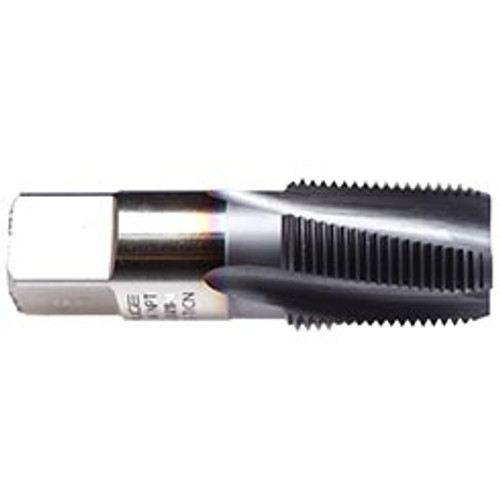

- Rekord KEG R10-NI pipe tap is a slow spiral design for NPT or NPTF through and blind hole applications
- Longer tool life and more consistent thread quality
Product Specifications
| Chamfer | 2 -3 P |
| Chamfer Form | C |
| Pitch | 11-1/2 |
| Size | 2" |
| Thread Standard | NPT |
| Applicable Material | Nickel Alloys & High Tensile Materials |
| Application | Through & Blind Hole |
| Coolant Fed | No |
| Coating | TICN |
| Material | HSSE |
| Type | Rekord KEG R10-NI |
| Length Group | ANSI Length |
| Flutes | 6 |
| Helix Angle (Degrees) | 10 Degree |
| Shank Diameter (mm) | 1.8750" |
| Dimension Standards | ANSI/ANSI |
| Shank Tolerance | h9 |
| Overall Length (mm) | 4.5" |
| Thread Length (mm) | 1.75" |
| Flute Direction | Right Hand |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
2"-11-1/2
Thread Standard:
NPT
Material:
HSSE
Finish/Coating:
TICN
Number of Flutes:
6
Overall Length (Inch):
4-1/2"
Overall Length (Decimal Inch):
4.5000"
Overall Length (mm):
114.3mm
Chamfer:
2 -3 P
Shank Diameter (Inch):
1-7/8"
Shank Diameter (Decimal Inch):
1.8750"
Shank Diameter (mm):
47.63mm
