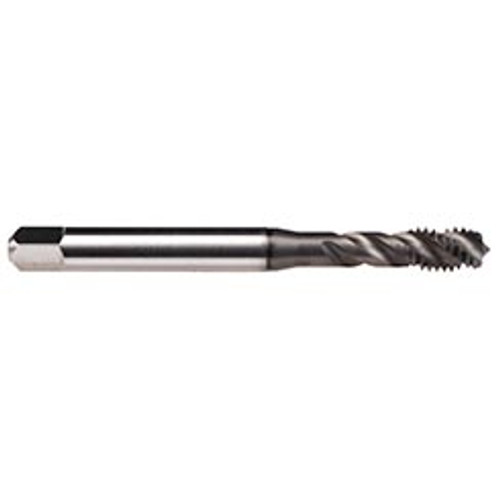

Emuge BU51C410.5639 | STI 1/4-28 -Tap -EnorMZ/E -GLT-1

$76.60 $70.94
(You save $5.66)
Ships:
From Manufacturer
Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
1/4"-28
Thread Limit:
3B
Chamfer:
1.5 -2 P
Number of Flutes:
3
Finish/Coating:
GLT-1
Material:
HSSE
Overall Length (Inch):
3-35/64"
Overall Length (Decimal Inch):
3.5430"
Overall Length (mm):
89.99mm
Helix Angle:
45°
Flute Direction:
Right Hand
Thread Standard:
STI-UNF
Thread Length (Inch):
43/64"
Thread Length (Decimal Inch):
0.6690"
Thread Length (mm):
16.99mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3180"
Shank Diameter (mm):
8.08mm
SKU:
15039070
Weight:
0.06 LBS
Shipping:
Calculated at Checkout
BU51C410.5639-B

Features:

  • The Enorm Z/E design is typically for blind hole threads in long chipping materials
  • Longer tool life and more consistent thread quality

Product Specifications

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Ships:
From Manufacturer
Brand:
Emuge
Thread Size:
1/4"-28
Thread Limit:
3B
Chamfer:
1.5 -2 P
Number of Flutes:
3
Finish/Coating:
GLT-1
Material:
HSSE
Overall Length (Inch):
3-35/64"
Overall Length (Decimal Inch):
3.5430"
Overall Length (mm):
89.99mm
Helix Angle:
45°
Flute Direction:
Right Hand
Thread Standard:
STI-UNF
Thread Length (Inch):
43/64"
Thread Length (Decimal Inch):
0.6690"
Thread Length (mm):
16.99mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3180"
Shank Diameter (mm):
8.08mm
