Features

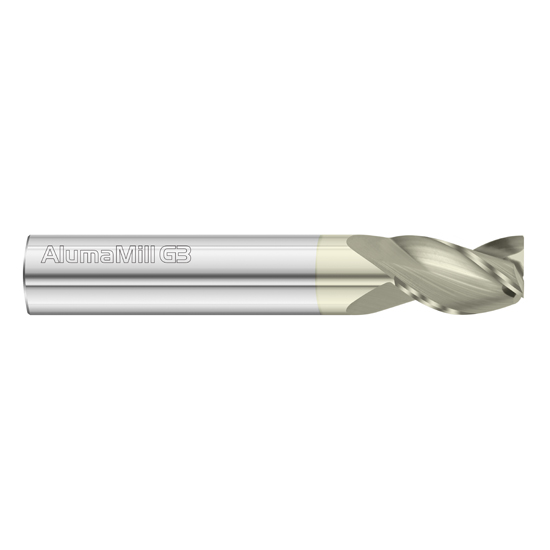

- The 3833 AlumaMill G3 is a 3-flute, high performance end mill designed for roughing and finishing aluminum and non-ferrous materials
- It excels in aggressive plunging and ramping speed environments and was designed for fast material removal and multi-purpose machining
- Its flute shape and relief form generates superior wall finishes, while its unique wiper geometry produces excellent floor finishes
- The 3833 AlumMill G3 is stocked uncoated and with FC-5 coating
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.1875" |
| Cutting Diameter (mm) | 4.76mm |
| Cutting Diameter (Inch) | 3/16" |
| Cutting Flute Length (Decimal Inch) | 0.3125" |
| Cutting Flute Length (mm) | 7.94mm |
| Cutting Flute Length (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (mm) | 4.76mm |
| Shank Diameter (Inch) | 3/16" |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (mm) | 50.80mm |
| Overall Length (Inch) | 2" |
| Coating/Finish | FC5 |
| Metric/Inch | Inch |
| Number of Flutes | 3 |
| Helix Angle (Degrees) | 37.5 |
| Flute Spiral Direction | Right Hand |
| Direction of Cut | Right Hand |
| Point End Type | Square |
| End Type Character Designation | S |
| End Type | Single End |
| Coolant Through | Non Coolant Through |
| Weldon Flat | No |
| Length | Stub |
| Length Designator | STB |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Fullerton Tool
Mill Diameter (Inch):
3/16"
Number of Flutes:
3
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3125"
Length of Cut (mm):
7.94mm
Shank Diameter (inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Material:
Solid Carbide
Finish/Coating:
FC5
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Series:
3833 AlumaMill G3
Ships:
From Partner Facility
