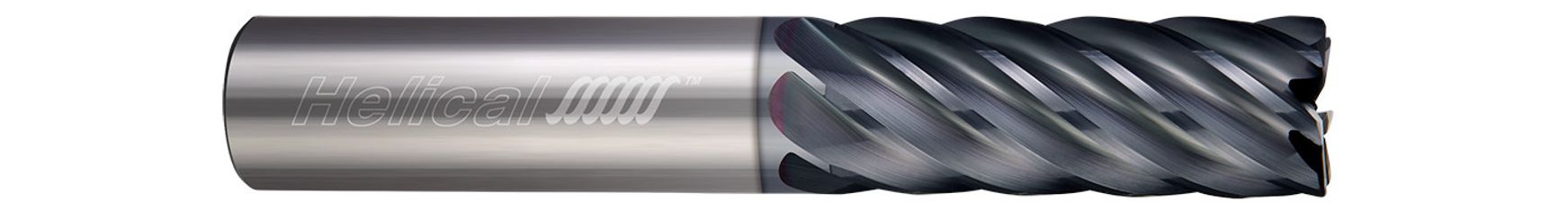

The HEV-7 is designed to withstand and excel in the toughest applications and materials. The high flute count and variable pitch geometry give this tool the strong core and extreme performance necessary for steels and titanium alloys.
- Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, cast iron, titanium, and titanium alloys.
- Engineered for excellent performance in High Efficiency Milling (HEM)
- 7 flute variable pitch design for reduced harmonics and increased feed rates
- End cutting geometry (non-center cutting)
- h6 shank tolerance for high precision tool holders
- Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
- Solid carbide end mills
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.7500" (3/4) |
| Length of Cut (Inch) | 2.7500" (2-3/4) |
| Overall Length (Inch) | 5" |
| Corner Radius (Inch) | 0.0600" |
| No of Flutes | 7 |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Finish/Coating | APLUS |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
7
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
2-3/4"
Length of Cut (Decimal Inch):
2.7500"
Length of Cut (mm):
69.85mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127mm
