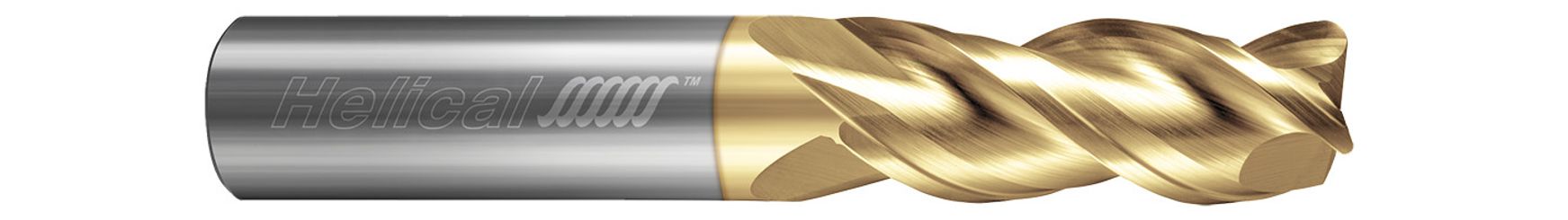

Helical Solutions 86118 | H40ALV-M-30250-R.020 1/4" Diameter x 1/4" Shank x 1" LOC x 3" OAL x 0.0200" Radius 3 Flute Uncoated Solid Carbide Corner Radius End Mill

$41.80
Brand:
Helical Solutions
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
3
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.51mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Finish/Coating:
UN
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
interval quantity:
1
SKU:
25188400
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
86118

Related Products

The H40ALV-3's end geometry contains a wiper flat, designed to swiftly remove scallop marks on the floor of a part to leave a superior finish in aluminum and non-ferrous alloys. This feature is included on all square profiles and where the tool's corner radius does not exceed 20 percent of the cutter diameter.

  • Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
  • Designed with a specialized combination of features for excellent performance in roughing and finishing applications
  • Unique "3 teeth-to-center" end geometry for ramping applications
  • Wiper flat design leaves superior floor finish*
  • Excellent performance in High Efficiency Milling (HEM)
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Uncoated tool offers an excellent option for aluminum finishing applications
  • Zplus coating offers higher hardness and added lubricity for maximum performance
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.2500" (1/4)
Length of Cut (Inch)1"
Overall Length (Inch)3"
Corner Radius (Inch)0.0200"
No of Flutes3
Shank Diameter (Inch)0.2500" (1/4)
Finish/CoatingUncoated
Center Cutting (Yes/No)Yes
