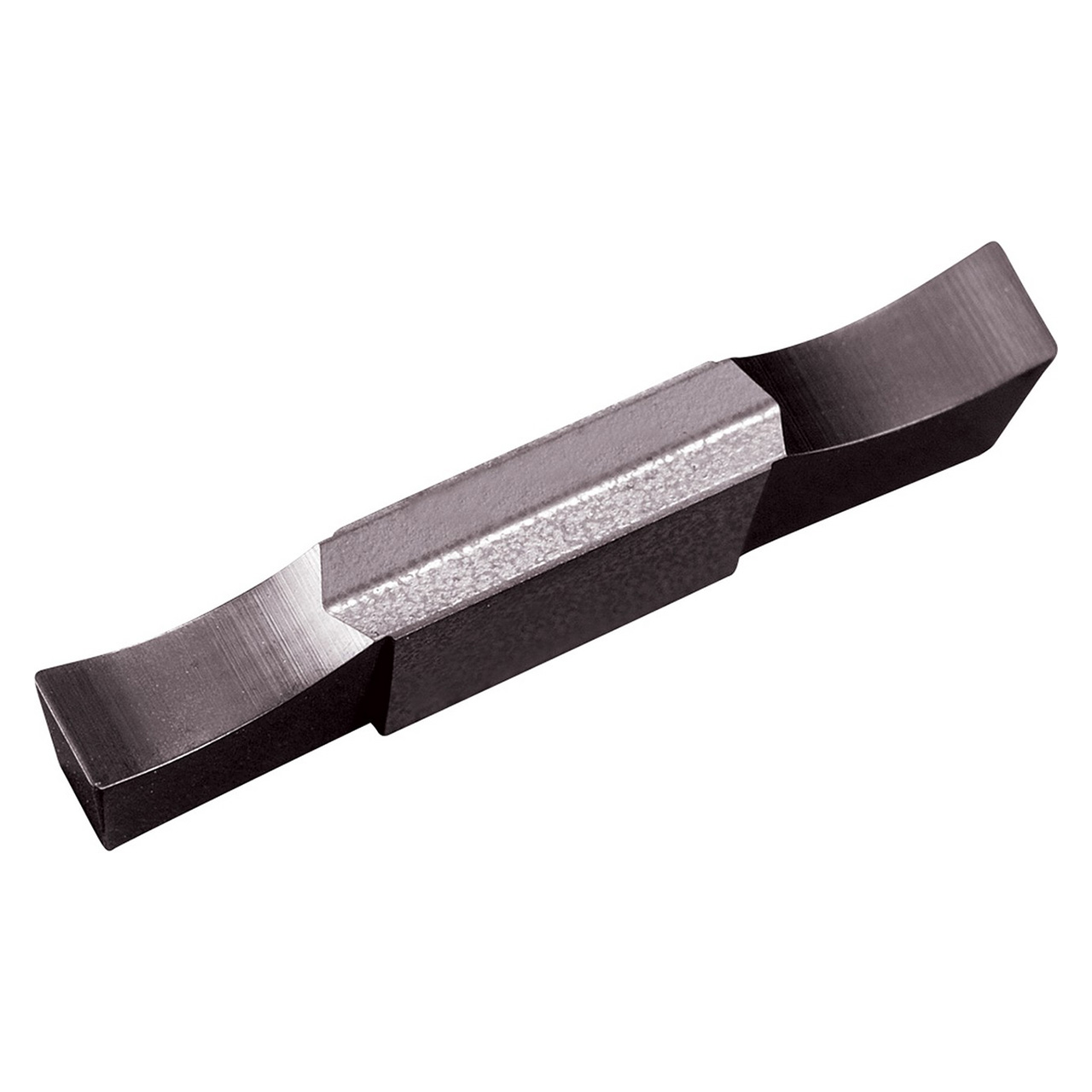

Kyocera Precision Tools TLC10720 | GDG2520N020GS PR1535 0.0984" Cutting width x 0.7874" Insert Length PVD Coated Carbide Grooving Insert

$22.92
Brand:
Kyocera Precision Tools
Insert Style:
GDG
Insert Size:
2520
Material:
Carbide;Cutting Width (Decimal Inch)=0.0984"""
Cutting Width (mm):
2.50mm
Maximum Depth of Cut (Decimal Inch):
0.6693"
Maximum Depth of Cut (mm):
17.00mm
Manufacturer's Grade:
PR1535
Finish/Coating:
PVD
SKU:
23242114
Weight:
0.08 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving
  • Low Cutting Force / 2-edge
  • 2 Cutting edges
  • Stabilized turning operations and long tool life with MEGACOAT NANO coating technology
  • Application: PVD for titanium alloy and precipitation hardened stainless steel

Product Specifications
Tool NumberTLC10720
Max Depth of Cut (Decimal Inch)0.6693"
Max Depth of Cut (mm)17.00mm
Cutting Width (Decimal Inch)0.0984"
Cutting Width (mm)2.50mm
Cutting Width Minimum (Decimal Inch)0.0984"
Cutting Width Minimum (mm)2.50mm
Cutting Width Maximum (Decimal Inch)0.0984"
Cutting Width Maximum (mm)2.50mm
Insert Length (Decimal Inch)0.7874"
Insert Length (mm)20.00mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)0.169"
Thickness (mm)4.30mm
ApplicationExternal Grooving
ChipbreakerGS
Coating ProcessPVD
Cutting RangeMedium Roughing
HandNeutral
Insert Holding MethodClamp
Insert GradePR1535
Insert Size2520
MaterialCarbide
Number of Cutting Edges2
Primary Workpiece MaterialHeat-Resistant Alloy (S)
Usage ClassificationLight Interruption
