Product Specifications

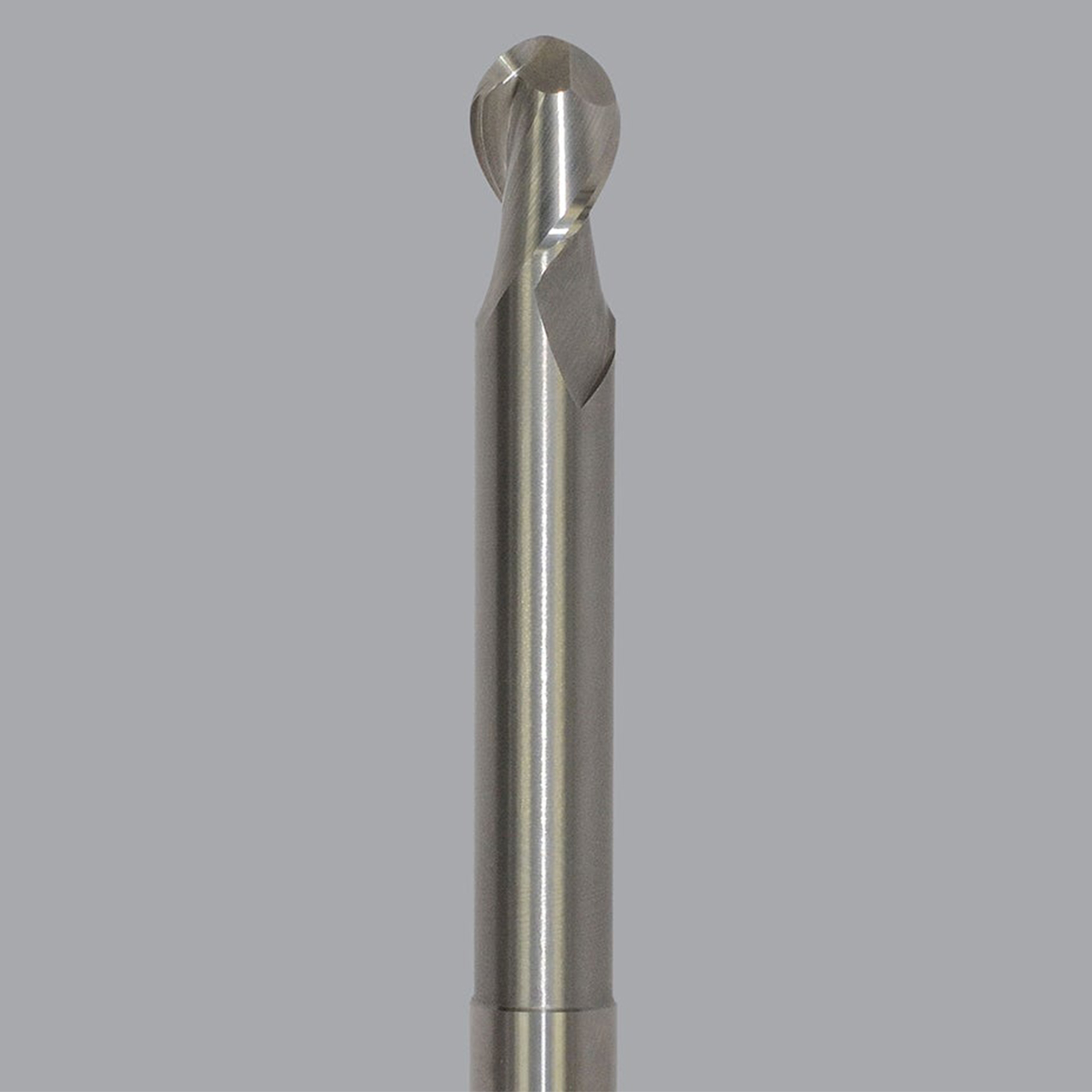

| Manufacturer Part Number | AMC707188 |
| Series | AFNM-2 |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Length of Cut (Decimal Inch) | 1.000" |
| Extended Length (Decimal Inch) | 3.125" |
| Shank Diameter (Decimal Inch) | 0.750" |
| Overall Length (Decimal Inch) | 5.000" |
| End Type | Ball |
| Tool Material | Solid Carbide |
| Material Cut | Milling Non-Ferrous |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Onsrud
Cutting Diameter (Decimal Inch):
0.7500"
Shank Diameter (Decimal Inch):
0.7500"
Helix Angle:
40 Degree
Material:
Solid Carbide
Finish/Coating:
Uncoated
Number of Flutes:
2
Length of Cut (Decimal Inch):
1.0000"
Overall Length (Decimal Inch):
5.0000"
Shank Type:
Round
Through Coolant:
No
interval quantity:
1
