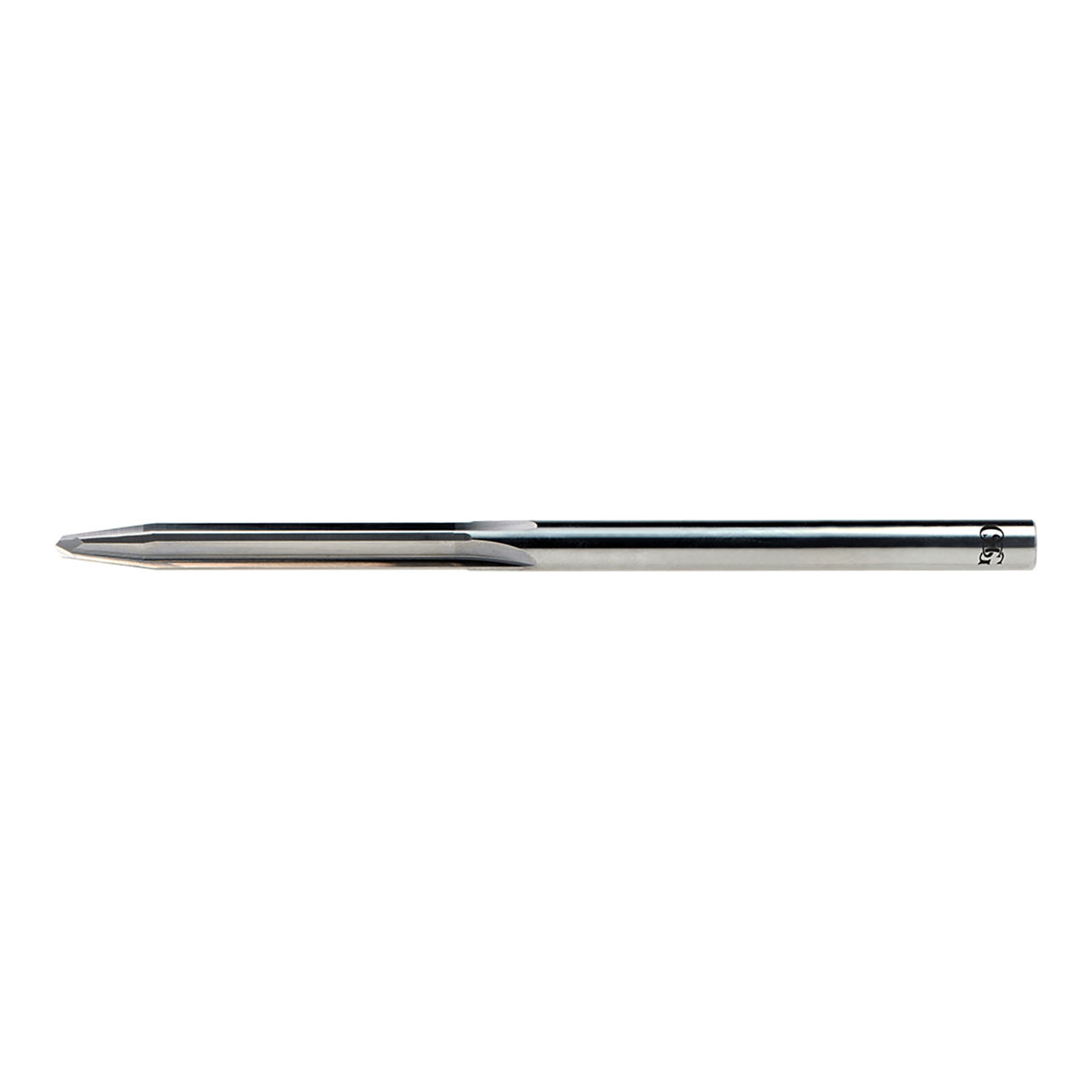

OSG 257-2055 | 5.22mm Diameter x 5.21mm Shank x 101.60mm OAL 4 Flute Carbide Chucking Reamer

$62.30
Brand:
OSG
Cutting Direction:
Right Hand
Diameter (Decimal Inch):
0.2060"
Diameter (mm):
5.22mm
Diameter (Wire):
5
Flute Length (mm):
51.20mm
Number of Flutes:
4
Overall Length (mm):
101.60mm
Shank Diameter (mm):
5.21mm
Material:
Carbide
Finish/Coating:
Bright
Taper Length (mm):
10.40mm
interval quantity:
1
SKU:
10291519
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

The Carbide AERO-D-REAM is a high performance Tapered drill/reamer for composites.

Features & Benefits:

  • Straight Flute: Limits peel-up at Hole entrance
  • Elongated double-angle geometry: Reduces thrust and limits exit delamination
  • Ultra-fine micrograin carbide: Smaller grain size yields improved Wear Resistance and better coating adhesion properties for extended tool life
Product Specifications
Manufacturer Part Number257-2055
Cutting Diameter Tolerance (Decimal Inch)+0.0005 / -0"
Cutting DirectionRight Hand
Diameter (Decimal Inch)0.206"
Diameter (mm)5.22mm
Diameter (Wire)5
Flute Length (mm)51.20mm
List NameAERO-D-REAM
Number of Flutes4
Overall Length (mm)101.60mm
Shank Diameter (mm)5.21mm
Shank Toleranceh6
MaterialCarbide
CoatingBright
Taper Length (mm)10.40mm
Product TypeChucking Reamer
