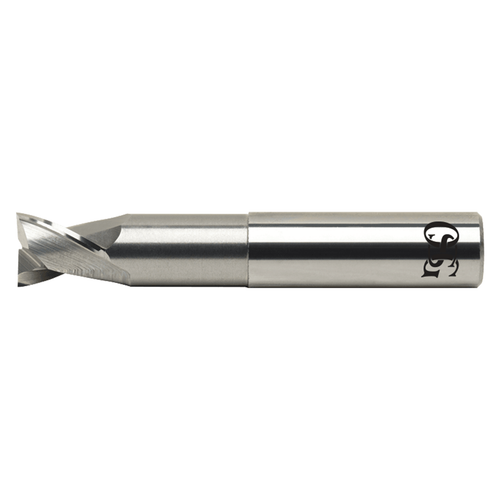

High Speed Carbide End Mills for Aluminum Alloy
Features & Benefits:
- High Rigidity: Applicable for High Power Equipment
- Optimal Flute Shape: Excellent chip evacuation
- DLC Coating: Excellent Welding Resistance and Lubricity
- Sharp Cutting Edge: Exceptional Performance in Aluminum Alloy
Product Specifications
| Manufacturer Part Number | 28730050 |
| Cutting Diameter Tolerance (Decimal Inch) | +0 / -0.0008" |
| Cutting Direction | Right Hand |
| Diameter (Inch) | 1/2" |
| Diameter (Decimal Inch) | 0.500" |
| Helix Angle (Degree) | 30 Degree |
| Helix Direction | Right Hand |
| Length of Cut (Decimal Inch) | 0.750" |
| List Name | AERO-ETS |
| Neck Diameter (Decimal Inch) | 0.461" |
| Neck Length (Decimal Inch) | 2.205" |
| Number of Flutes | 3 |
| Overall Length (Decimal Inch) | 4.000" |
| Shank Diameter (Decimal Inch) | 0.500" |
| Shank Tolerance | h6 |
| Material | Carbide |
| Coating | DLC |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
OSG
Cutting Direction:
Right Hand
Diameter (Inch):
1/2"
Diameter (Decimal Inch):
0.5000"
Helix Angle:
30 Degree
Length of Cut (Decimal Inch):
0.7500"
Neck Diameter (Decimal Inch):
0.4610"
Neck Length (Decimal Inch):
2.2050"
Number of Flutes:
3
Overall Length (Decimal Inch):
4.0000"
Shank Diameter (Decimal Inch):
0.5000"
Material:
Carbide
Finish/Coating:
DLC
