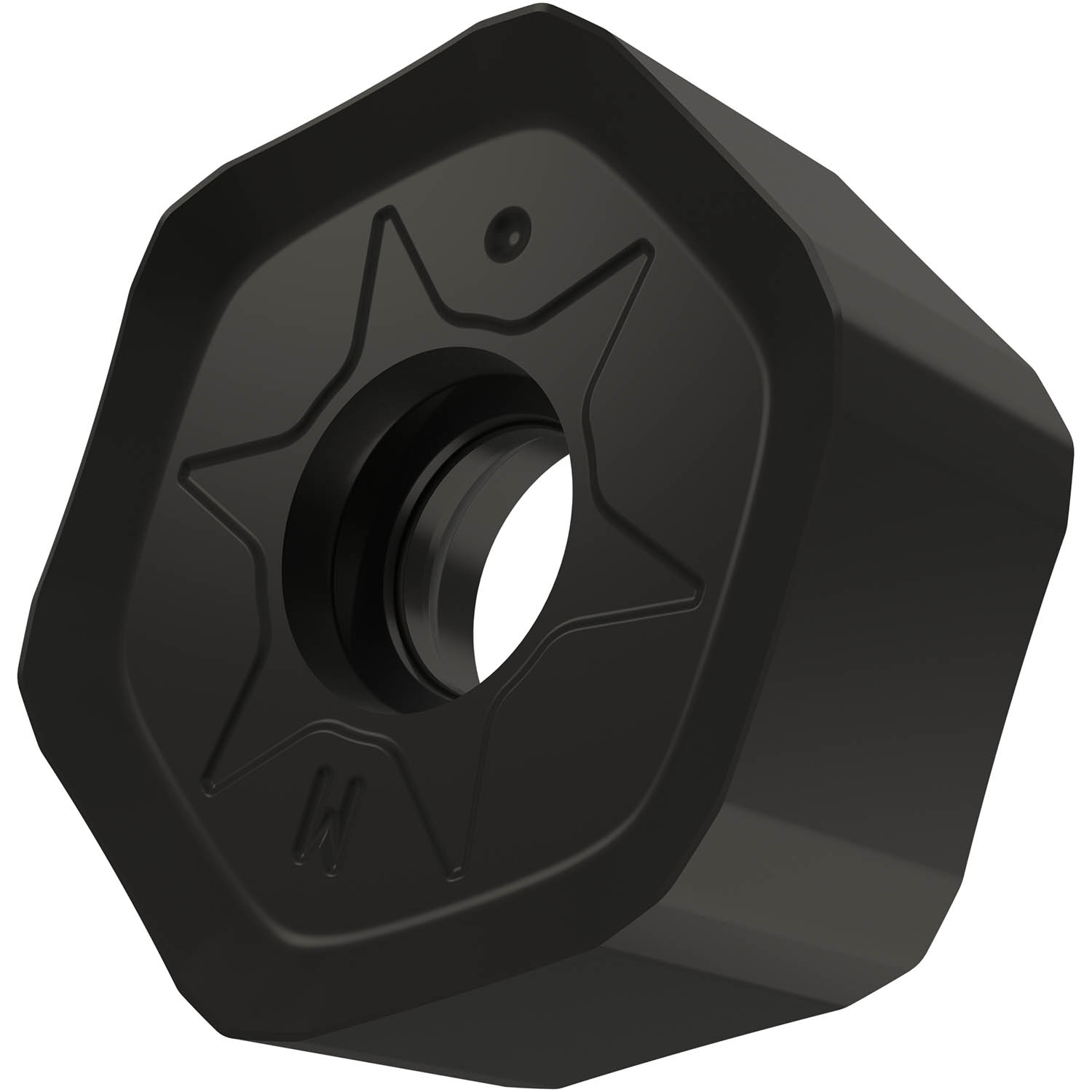

Double-sided milling insert HNGX 0906, hectagonal for a maximum depth of cut of 5.0 mm, with an indexing accuracy according to ISO-tolerance class-G and M geometry with rounded cutting edges and facet, M9315 MT-CVD coated WC-Co carbide within ISO-grade range P05-P25 for machining of steel with face mills SHN09C.
Product Specifications
| EDP Number | 6753668 |
| Maximum Depth of Cut (mm) | 5 mm |
| Max Depth of Cut (Inch) | 0.197" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.9 mm |
| Fixing Hole Diameter (Inch) | 0.193" |
| Inscribed Circle Diameter (mm) | 16.5 mm |
| Inscribed Circle Diameter (Inch) | 0.65" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Coating Process | MT-CVD |
| Coating | M9315 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.8 mm |
| Min Depth of Cut (Inch) | 0.031" |
