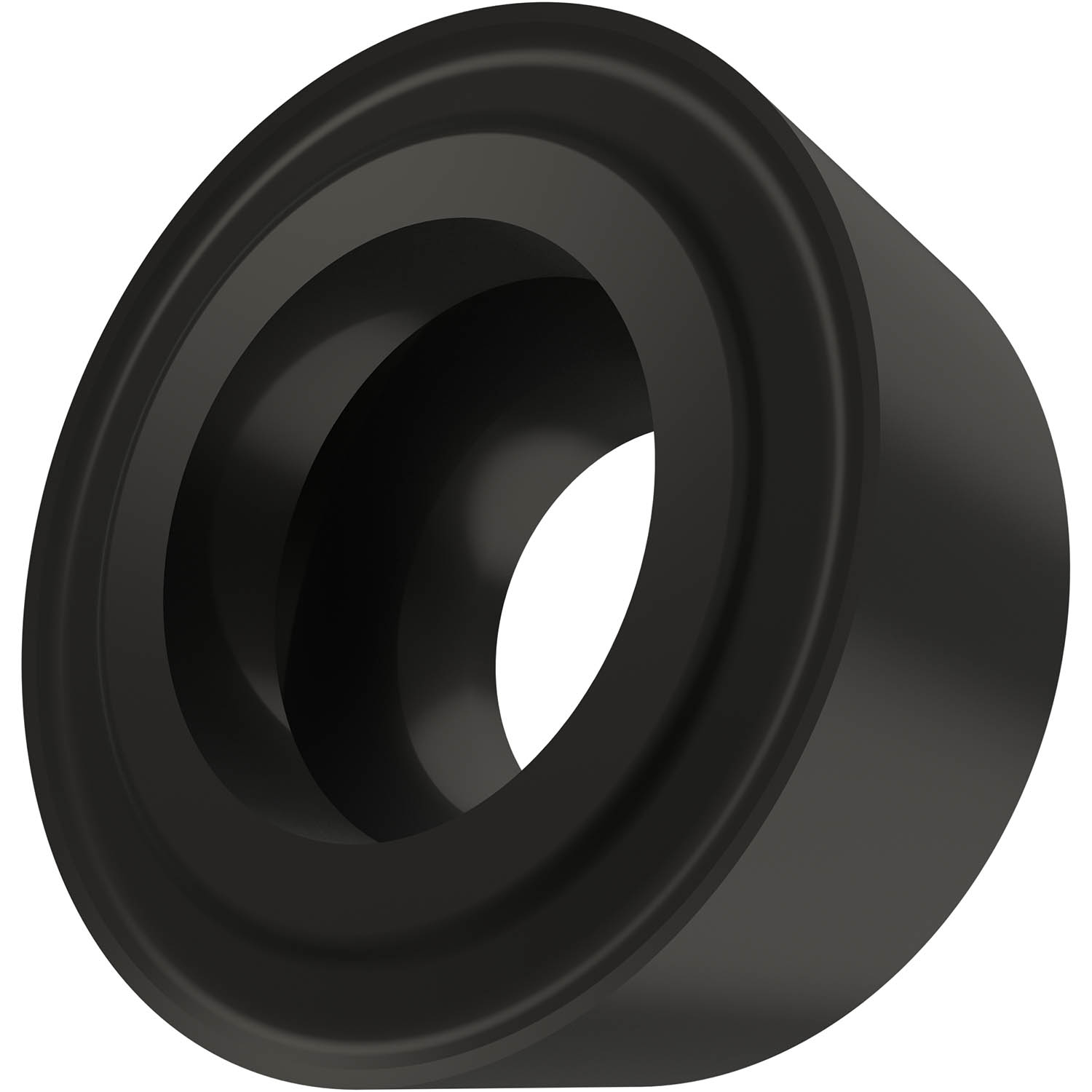

Single-sided positive turning insert, round with 7° clearance, a diameter of 8 mm, 3.18 mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker UR with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M25, for fine to heavy machining of stainless-steels.
Product Specifications
| EDP Number | 7156318 |
| Max Depth of Cut (mm) | 3 mm |
| Max Depth of cut (Inch) | 0.118" |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 3.4 mm |
| Fixing Hole Diameter (Inch) | 0.134" |
| Insert Diameter (mm) | 8 mm |
| 0.315" | |
| Insert Thickness (mm) | 3.18 mm |
| Insert Thickness (Inch) | 0.125" |
| Coating Process | MT-CVD |
| Coating | T7325 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
| Chipbreaker Manufacturer's Designation | UR |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1250"
Thickness (mm):
3.18mm
interval quantity:
10
