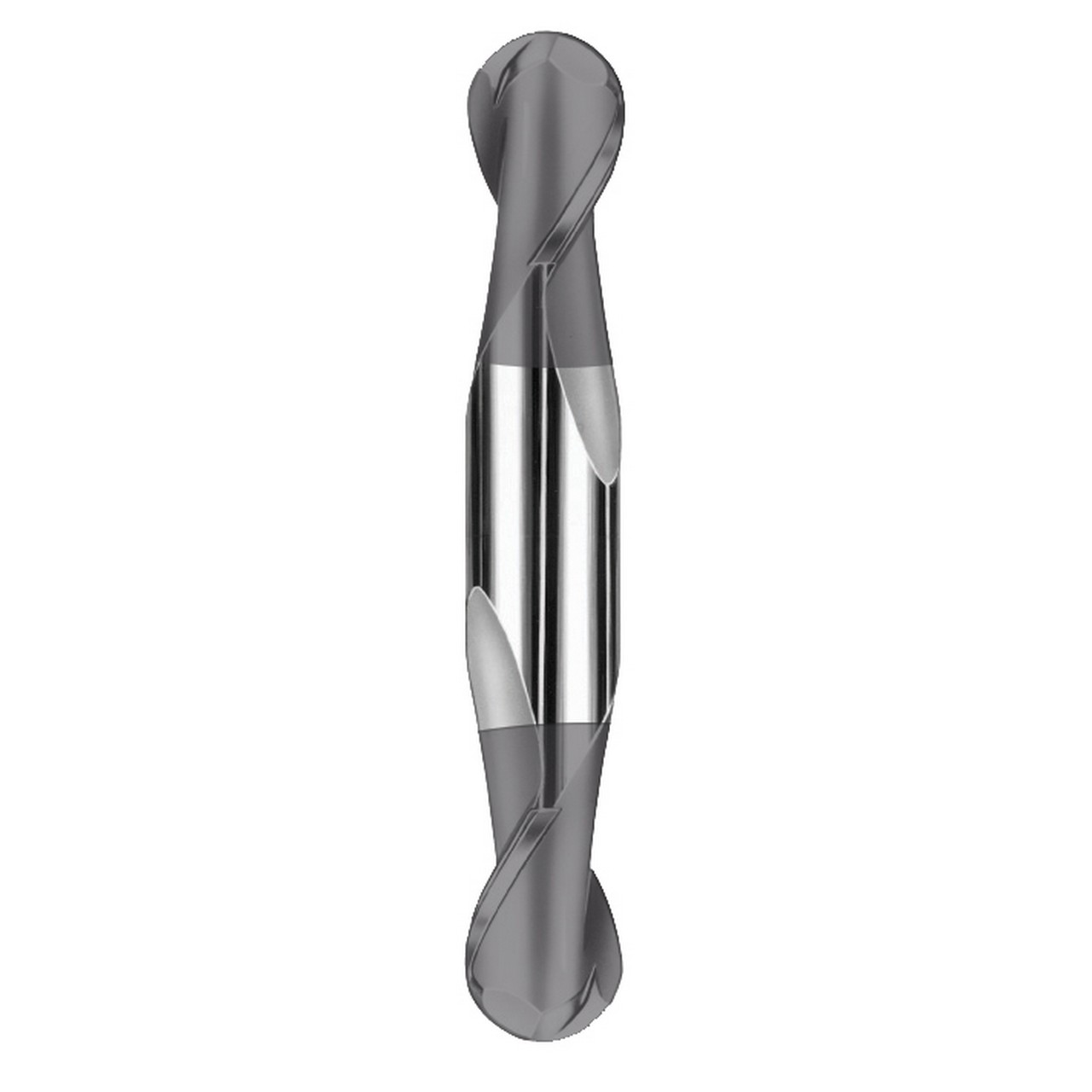

SGS 31348 | 13/64" Diameter x 1/4" Shank x 1/2" LOC x 2-1/2" OAL 2 Flute AlTiN Coated Ball End Mill

$29.55
Brand:
SGS
Number of Flutes:
2
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.7mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
TA
Cutting Direction:
RHC
Helix Angle (Degree):
33 Degree
SKU:
25194711
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

Product Specifications
Cutting Diameter (Inch)13/64"
Shank Diameter (Inch)1/4"
Length of Cut (Inch)1/2"
Overall Length (Inch)2-1/2"
Shank Length (Inch)2"
Cut of DirectionRight Hand
Flute TypeSpiral
Helix Angle33 Degree
CoatingAlTiN
Number of Flutes2
