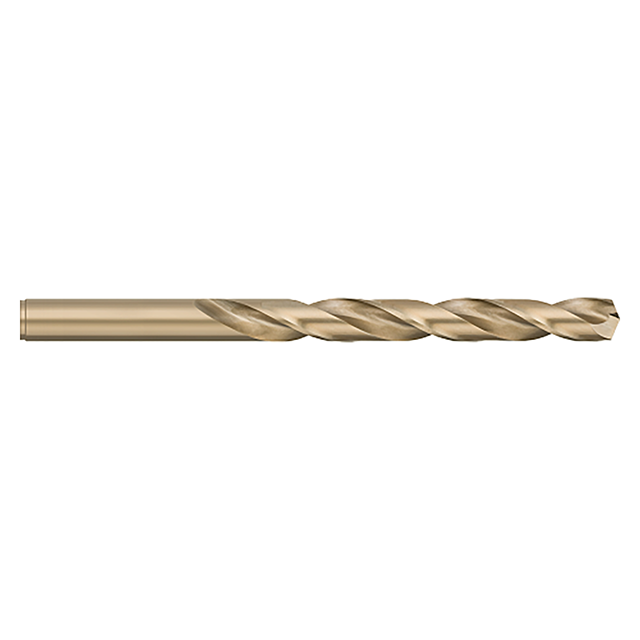

Name: Titan USA CD50021 | 0.3281" (21/64) Diameter x 0.3281" (21/64) Shank x 3.3125" (3-5/16) Flute Length x 4.6250" (4-5/8) OAL 2 Flute Gold Oxide Coated Cobalt Jobber Length Drill Bit
Brand: Titan USA
SKU: 10245960
Price: 7.34 USD
Availability: InStock

Titan USA CD50021 | 0.3281" (21/64) Diameter x 0.3281" (21/64) Shank x 3.3125" (3-5/16) Flute Length x 4.6250" (4-5/8) OAL 2 Flute Gold Oxide Coated Cobalt Jobber Length Drill Bit

$7.34

interval quantity:

SKU:

10245960

Weight:

0.09 LBS

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Features:

Jobber length for deeper drilling applications
Optimized for drilling stainless steels, nickel-based alloys, and titanium alloys
135 Degree Split Point, Type "J" (diameters<0.0625" are not split)
Gold Oxide finish extends tool life, improves lubricity, and reduces grinding stresses
M-42 cobalt (identification ring on shank)
CNC ground in the USA

Product Specifications

Manufacturer Part Number	CD50021
Drill Diameter (Inch)	0.3281" (21/64)
Shank Diameter (Inch)	0.3281" (21/64)
Overall Length (Inch)	4.6250" (4-5/8)
Flute Length (Inch)	3.3125" (3-5/16)
Point Angle (Degree)	135 Degree
Coating	Gold Oxide
Substrate	Cobalt
Number of Flutes	2
Product Type	Jobber Length Drill Bit

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
