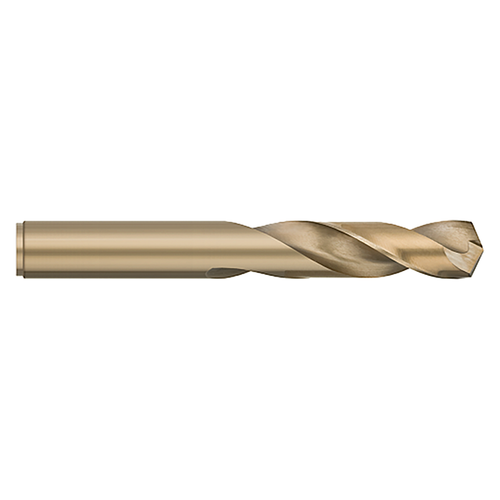

Engineered with stub length for increased rigidity, this Titan USA selection of M42 cobalt drills features tools that are optimized for drilling stainless steels, nickel-based alloys, and titanium alloys.
Features:
- Stub length for increased rigidity
- Optimized for drilling stainless steels, nickel-based alloys, and titanium alloys
- 135 Degree Split Point, Type "J" (diameters<0.0625" are not split)
- AlTiN coating offers increased wear and heat resistance
- M-42 cobalt (identification ring on shank)
- CNC ground in the USA
Product Specifications
Manufacturer Part Number | CD60410 |
Drill Diameter (Inch) | 0.2770" |
Flute Length (Inch) | 1.5000" (1-1/2) |
Shank Diameter (Inch) | 0.2770" |
Overall Length (Inch) | 2.6875" (2-11/16) |
Point Angle (Degree) | 135 Degree |
Number of Flutes | 2 |
Substrate | Cobalt |
Coating | Gold Oxide |
Product Type | Screw Machine Length Drill Bit |
![](https://cdn11.bigcommerce.com/s-mzpq4daxph/product_images/uploaded_images/warning-icon-new.png)
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Titan USA
Drill Bit Size (Inch):
18/65"
Drill Bit Size (Decimal Inch):
0.2770"
Drill Bit Size (mm):
7.04mm
Drill Point Angle:
135 Degree
Flute Length (Inch):
1-1/2"
Flute Length (Decimal Inch):
1.5000"
Flute Length (mm):
38.10mm
Overall Length (Inch):
2-11/16"
Overall Length (Decimal Inch):
2.6875"
Overall Length (mm):
68.26mm
Material:
Cobalt
Finish/Coating:
Gold Oxide
interval quantity:
6
