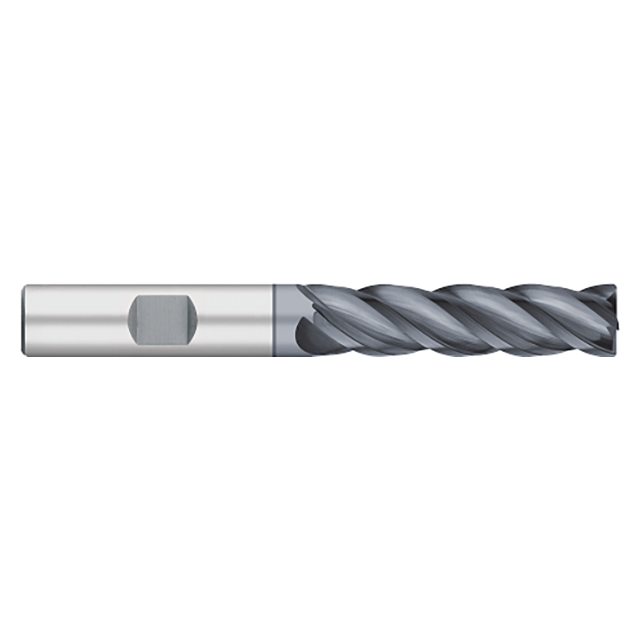

Titan USA TC23908 | 0.5000" (1/2) Diameter x 0.5000" (1/2) Shank x 1.5000" (1-1/2) LOC x 4.0000" (4) OAL x 0.0600" Radius 4 Flute ALCRO-MAX Coated Carbide Corner Radius End Mill

$91.55 $82.40
(You save $9.15)
Brand:
Titan USA
Cutter Diameter (Inch):
1/2"
Cutter Diameter (Decimal Inch):
0.5000"
Cutter Diameter (mm):
12.70mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.10mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Helix Angle:
38 Degree
Number of Flutes:
4
Finish/Coating:
AlCrO-MAX
Material:
carbide
interval quantity:
1
SKU:
25225058
UPC:
Weight:
0.36 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

This offering of VI-PRO 4 flute, Corner Radius End Mills features variable index geometry for great performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium.

Features:

  • VI-Pro variable index geometry offers outstanding performance in a wide range of materials, including high temp alloys, stainless steels, alloy steels, cast iron, and titanium
  • Offered in stub, regular, long, and extra long length styles
  • Corner radius for increased edge strength
  • Delivers efficient, chatter-free machining in roughing, profiling, finishing, and slotting applications up to 1x diameter
  • 4 flutes
  • Large core and eccentric relief for improved tool life
  • Post-polished AlCrO-MAX coating increases edge strength and wear resistance
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part NumberTC23908
Cutter Diameter (Inch)0.5000" (1/2)
Length of Cut (Inch)1.5000" (1-1/2)
Shank Diameter (Inch)0.5000" (1/2)
Corner Radius (Inch)0.0600"
Overall Length (Inch)4.0000" (4)
Number of Flutes4
SubstrateCarbide
CoatingALCRO-MAX
Product TypeCorner Radius End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
