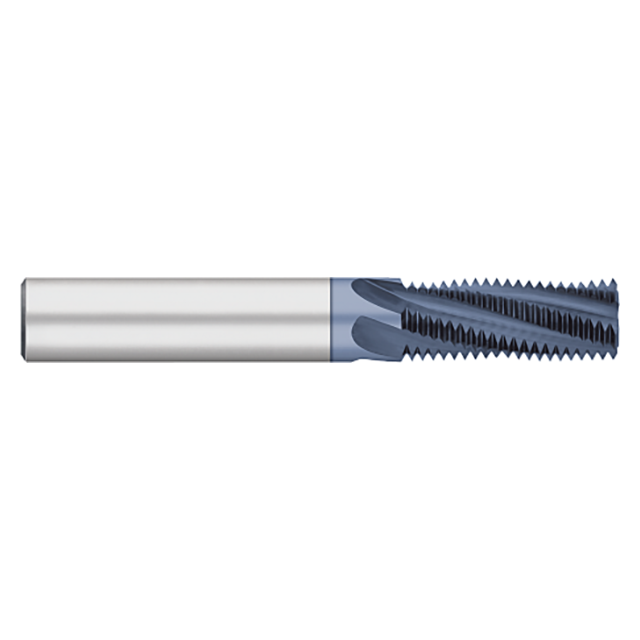

Optimized to cut internal and external National Pipe Taper for Fuels (N.P.T.F.) Threads, this offering of Titan USA tools mills right hand and left hand threads, and are offered with AlTiN coating for increased wear and heat resistance.
Features:
- Cuts internal and external National Pipe Taper for Fuels (N.P.T.F.) threads
- Mills right hand and left hand threads
- AlTiN coating offers increased wear and heat resistance
- Solid carbide
- CNC ground in the USA
Product Specifications
| Manufacturer Part Number | TC84407 |
| Cutter Diameter (Inch) | 0.3700" |
| Length of Cut (Inch) | 0.6250" (5/8) |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 4 |
| Thread Size (Inch) | 3/8"-18 |
| Substrate | Carbide |
| Coating | ALTIN |
| Product Type | Helical Flute Thread Mill |
