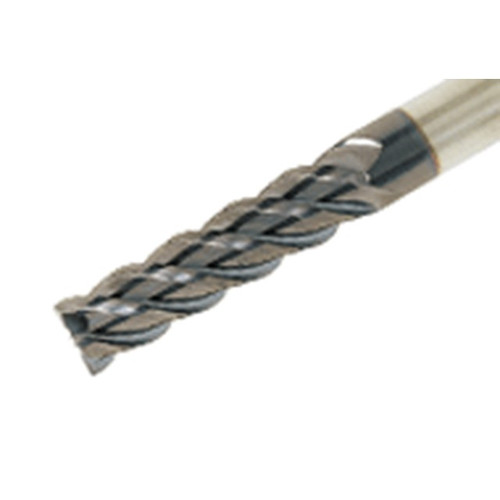

4 or 6 Flute endmill, 45 degree helix angle, long type.
Product Specifications
| Manufacturer Part Number | 5621211 |
| Connection Diameter Machine Side (mm) | 6mm |
| Cutting Diameter (mm) | 6mm |
| Maximum Depth of Cut (mm) | 24mm |
| Overall Length (mm) | 65mm |
| Maximum Feed per Tooth (mm/Tooth) | 0.06mm/tooth |
| Minimum Feed per Tooth (mm/Tooth) | 0.03mm/tooth |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 4 |
| Grade | AH725 |
| Body Material | Carbide |
| Coating | TiAlN |
| Application | Shoulder Milling |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Carbide Center Cutting Endmills 90 |
| Shank Type | Weldon |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| End Shape | Square |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Mill Diameter (Inch):
15/64"
Mill Diameter (Decimal Inch):
0.2400"
Mill Diameter (mm):
6.00mm
Number of Flutes:
4
Length of Cut (Inch):
15/16"
Length of Cut (Decimal Inch):
0.9400"
Length of Cut (mm):
24.00mm
Shank Type:
Weldon
Material:
Carbide
Finish/Coating:
TiAlN
Shank Diameter (Inch):
15/64"
Shank Diameter (Decimal Inch):
0.2400"
Shank Diameter (mm):
6.00mm
Application:
Shoulder Milling
Overall Length (Inch):
2-9/16"
Overall Length (Decimal Inch):
2.5600"
