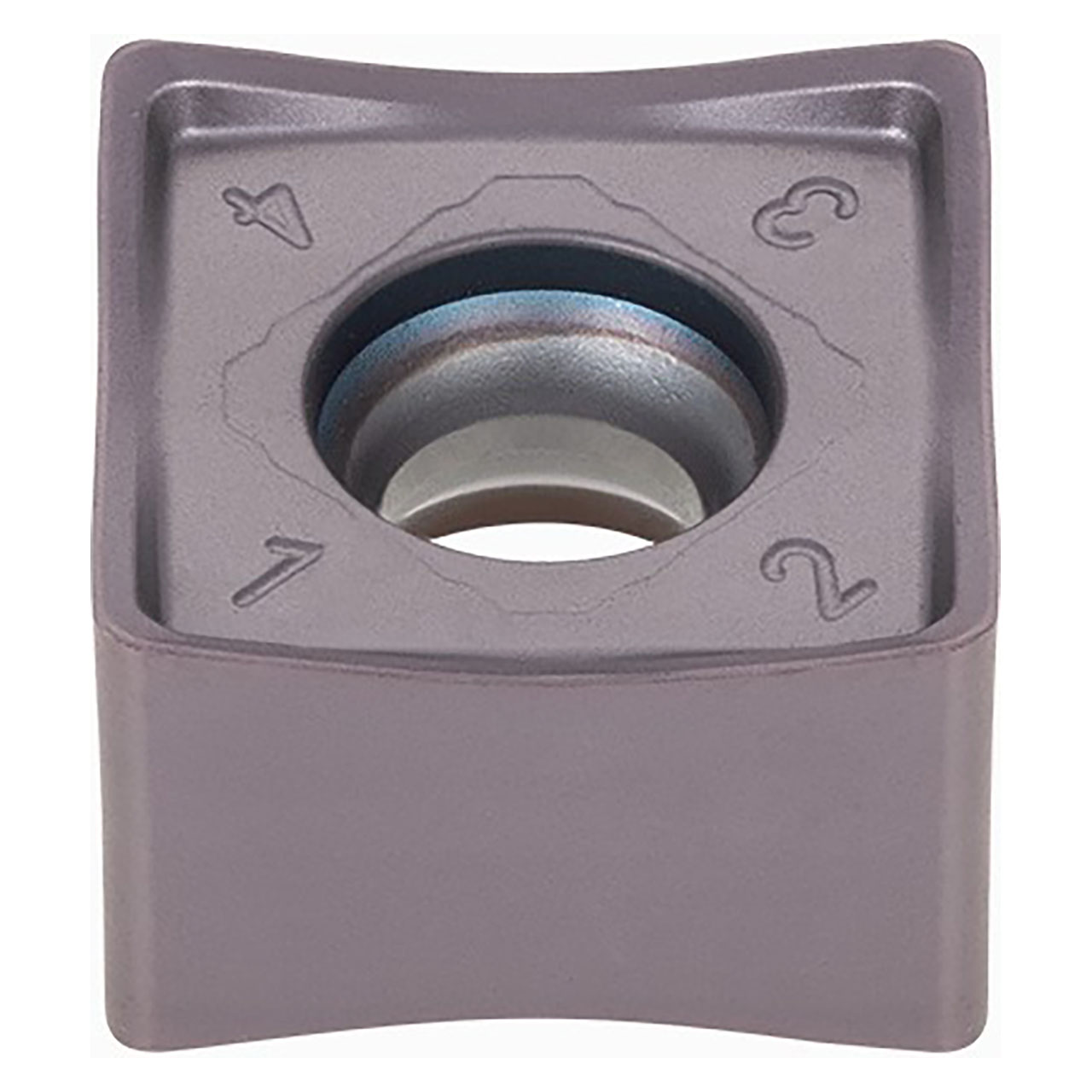

Double sided square inserts with 8 cutting edges and built-in wiper.
Product Specifications
| # MFG | 6780139 |
| Cutting Edge Effective Length (Inch) | 0.386" |
| Depth of Cut Maximum (Inch) | 0.374" |
| Insert Thickness (Inch) | 0.295" |
| Maximum Feed per Tooth | 0.012"/tooth |
| Minimum Feed per Tooth | 0.0024"/tooth |
| Number of Cutting Edges | 8 |
| Wiper Edge Length | 0.055" |
| Application | Face Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH3135 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH3135
Finish/Coating:
TiAlN
Thickness (Inch):
19/64"
Thickness (Decimal Inch):
0.2950"
Thickness (mm):
7.49mm
interval quantity:
10
