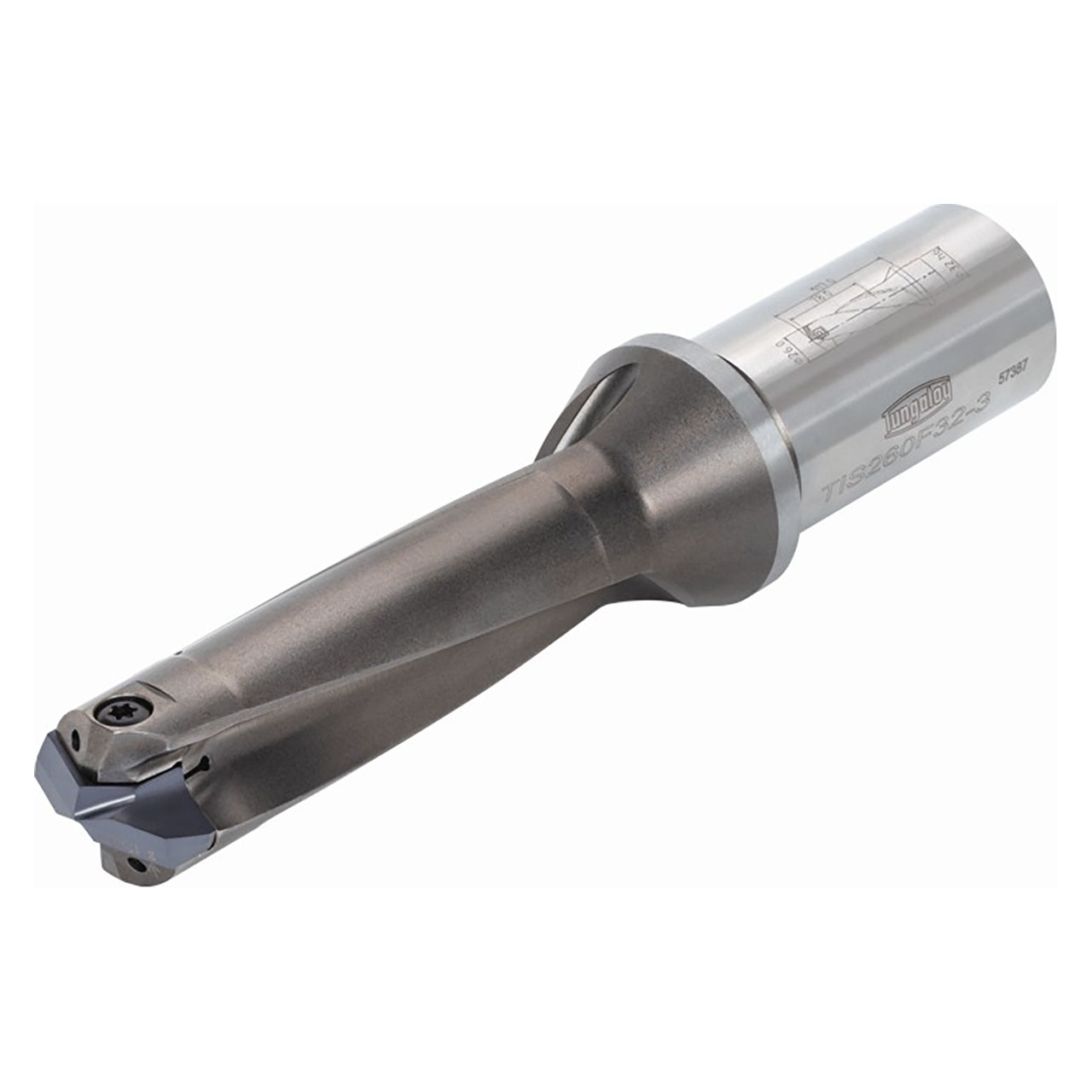

"DrillMeister" indexable head drill with cylindrical shank.
Product Specifications
| Cutting Diameter Maximum (mm) | 20.9 mm |
| Cutting Diameter Minimum (mm.) | 20 mm |
| Flange Diameter (mm) | 32 mm |
| Connection Diameter Machine Side (mm) | 10 mm |
| Overall Length (mm) | 148.10mm |
| Point Length (mm) | 1.29 mm |
| Shank Length (mm) | 50 mm |
| Usable Length (mm) | 51 mm |
| Insert Seat Size Code (SSC) | 8 |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (mm):
20.90mm
Minimum Cutting Diameter (mm):
20.00mm
Flange Diameter (mm):
32.00mm
Body Material:
Steel
Overall Length (mm):
148.10mm
Point Length (mm):
3.11mm
Shank Length (mm):
56.00mm
Usable Length (mm):
63.10mm
interval quantity:
1
