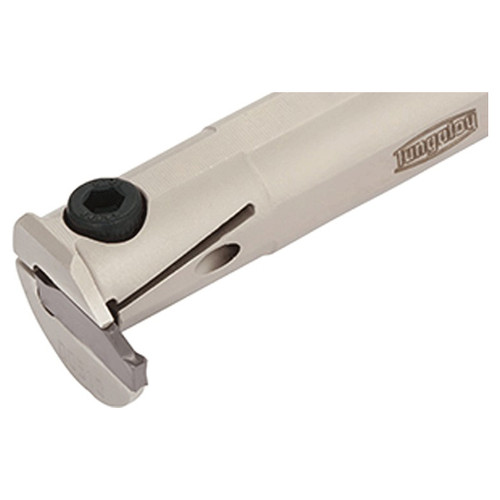

Boring bars for Internal grooving & turning.
Product Specifications
| Manufacturer Part Number | 6860895 |
| Connection Diameter Machine Side (mm) | 40.00mm |
| Cutting Width Maximum (mm) | 8.49mm |
| Cutting Width Minimum (mm) | 6.50mm |
| Functional Length (mm) | 300.00mm |
| Functional Width (mm) | 25.8mm |
| Head Length (mm) | 65.00mm |
| Minimum Bore Diameter (mm) | 42.00mm |
| Shank Height (mm) | 38.00mm |
| Cutting Direction | Right Hand |
| Tool Type | Indexable Turn & Groove Tools |
| Application | Internal Grooving |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Minimum Bore Diameter (Inch):
1-21/32"
Minimum Bore Diameter (Decimal Inch):
1.6500"
Minimum Bore Diameter (mm):
42.00mm
interval quantity:
1
