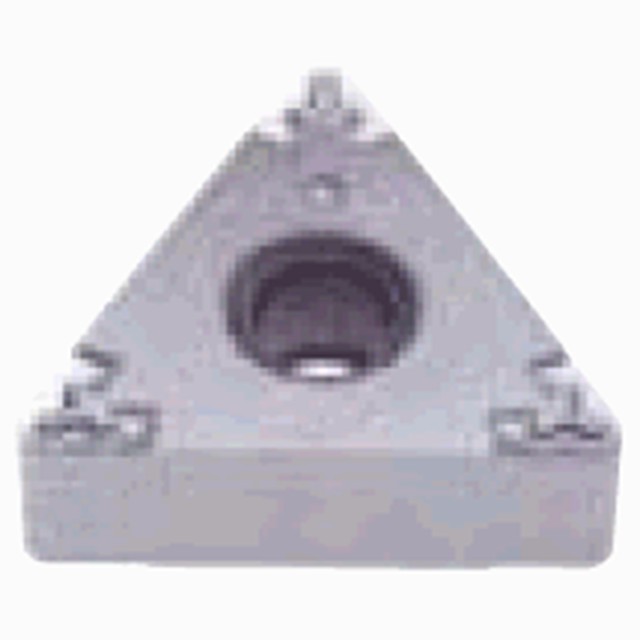

Tungaloy 6997820 | TNGG 221-01 NS9530 1/4" Circle Diameter x 1/8" Thickness x 0.016" Radius Cermet Indexable Turning Insert

$12.95 $9.07
(You save $3.88)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
1/8"
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
SKU:
23139390
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Negative relief angle, G class, triangular insert, for precision finishing.


Product Specifications
Manufacturer Part Number6997820
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.433"
Maximum Depth of Cut (Inch)0.0197"
Fixing Hole Diameter (Inch)0.089"
Inscribed Circle Diameter (Inch)1/4"
Insert Thickness (Inch)1/8"
Maximum Turning Feed (Inch)0.0059"/rev
Minimum Depth of Cut (Inch)0.0007"
Minimum Turning Feed (Inch)0.0012"/rev
Cutting Edge MaterialCermet
GradeNS9530
Tool TypeTurn Negative Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron
Chip Breaker Type1
Body MaterialCarbide
