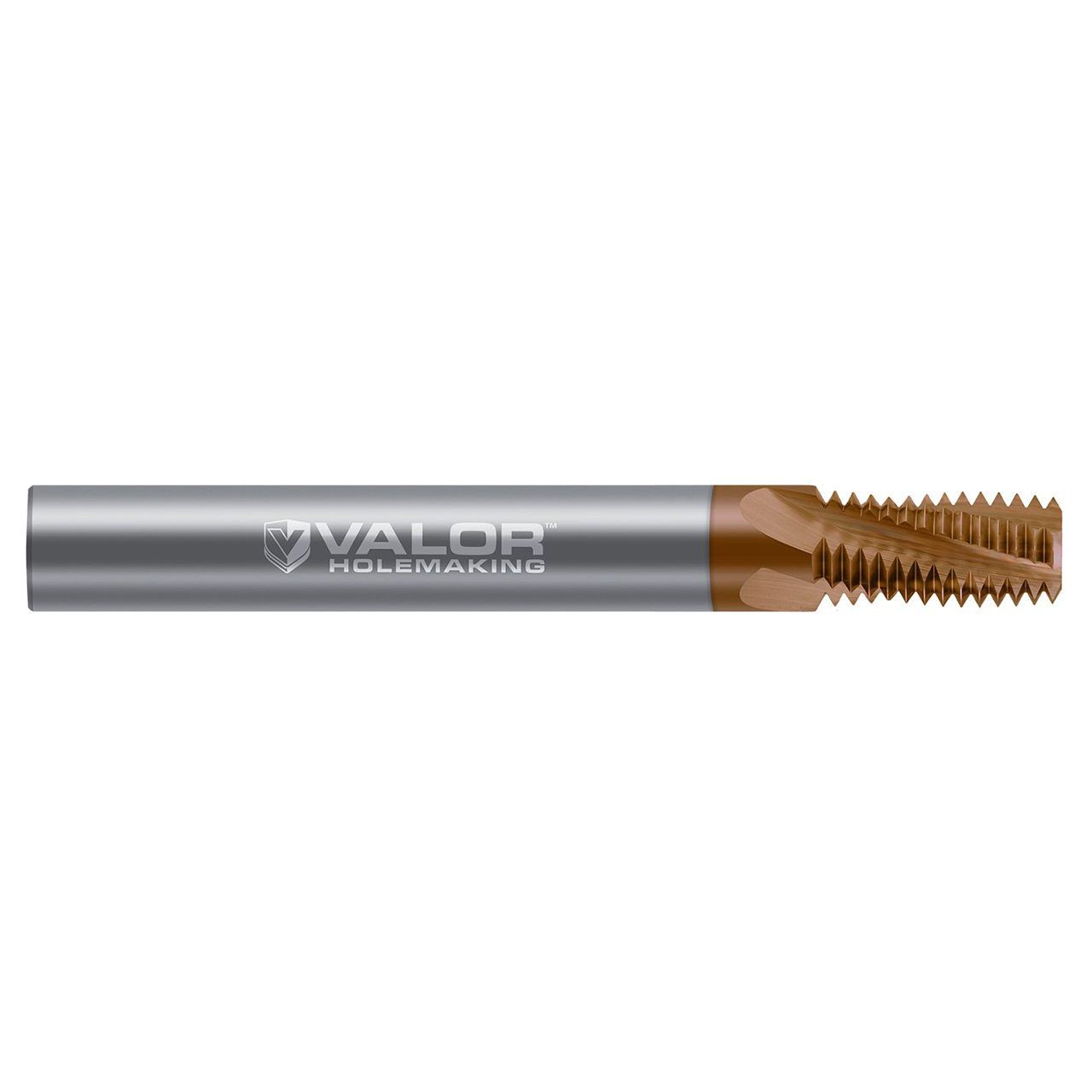

Engineered to mill both right hand and left hand threads, Valor holemaking's offering of multi-form thread mills for National Pipe Taper (NPTF) threads features Val-Max X coating for improved tool life and heat resistance.
Features:
- Engineered to cut internal and external 60 Degree National Pipe Taper Fuel (NPTF) threads
- Designed to mill right hand and left hand threads for added versatility
- Offered in 3 and 4 helical flutes
- Uncoated option well-suited for aluminum alloys and other non-ferrous alloys
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | V169267-X |
| Cutter Diameter (Inch) | 0.3050" |
| Length of Cut (Inch) | 0.6250" (5/8) |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Overall Length (Inch) | 3.0000" (3) |
| Size | 1/4, 3/8-18 |
| Included Angle | 60 Degree |
| Angle Per Side | 1 Degree 47' |
| Metric | N |
| Number of Flutes | 4 |
| Coating | Val-Max X |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Cutter Diameter (Inch):
1/3"
Cutter Diameter (Decimal Inch):
0.3050"
Cutter Diameter (mm):
7.75mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Number of Flutes:
4
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Finish/Coating:
Val-Max X
