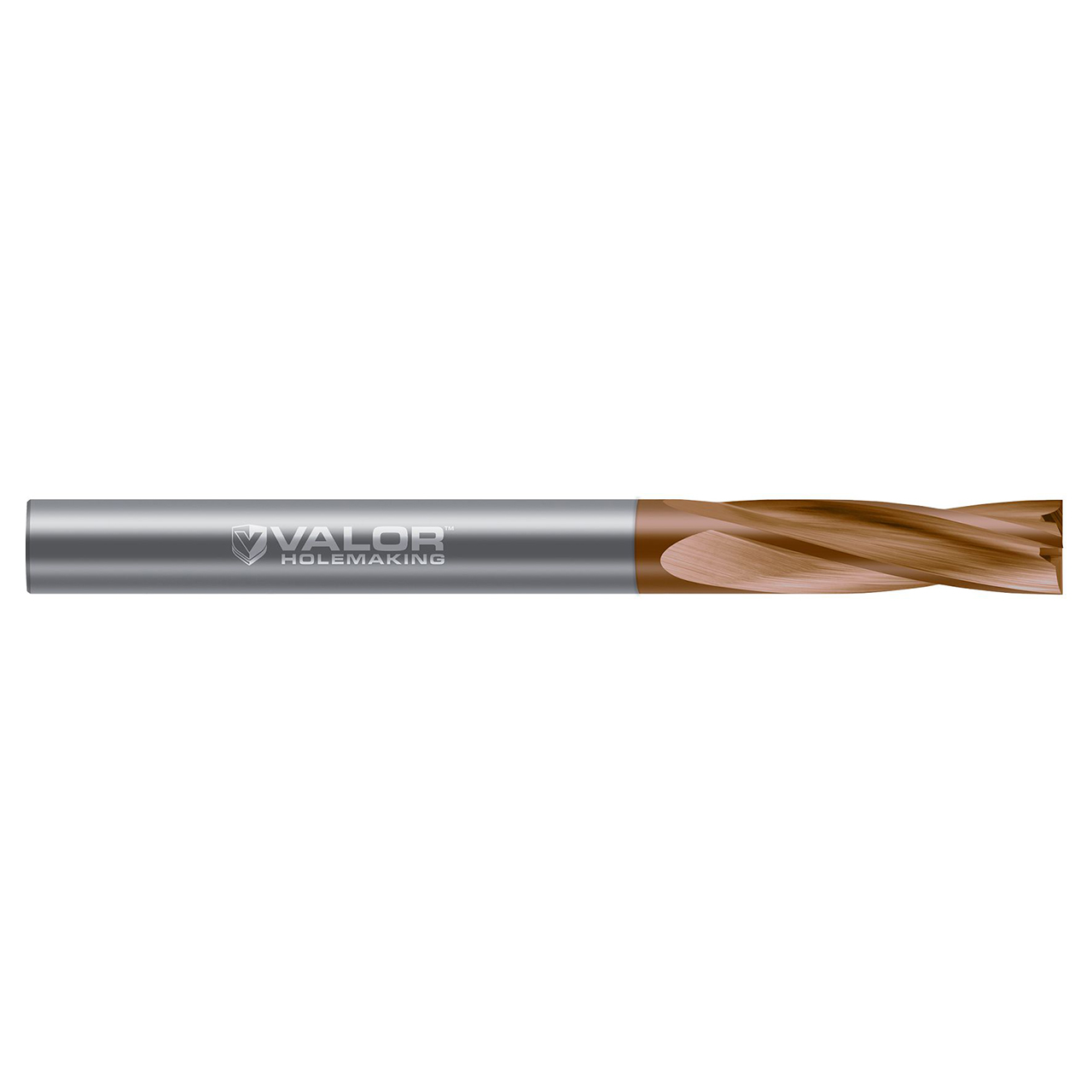

Swifty spot face or counterbore irregular surfaces and complex parts with this offering of 4 flute flat bottom counterbores and achieve excellent performance when flat bottom reaming or straightening misaligned holes.
Features:
- Outstanding for flat bottom reaming or straightening misaligned holes
- Flat bottom design (no dish) allows for spot facing or counterboring on irregular surfaces commonly found on rounded or complex parts
- Ground with full cylindrical margin (not side cutting)
- Center cutting
- 15 Degree helix
- Uncoated option well-suited for aluminum alloys and other non-ferrous alloys
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | V802980-X |
| Cutter Diameter (Inch) | 0.3937" |
| Cutter Diameter (mm) | 10mm |
| Flute Length (Inch) | 1.000" (1) |
| Shank Diameter (Inch) | 0.4375" (7/16) |
| Overall Length (Inch) | 2.7500" (2-3/4) |
| Metric | N |
| Number of Flutes | 4 |
| Coating | Val-Max X |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Cutter Diameter (Inch):
37/94"
Cutter Diameter (Decimal Inch):
0.3937"
Cutter Diameter (mm):
10.00mm
Shank Diameter (Inch):
7/16"
Shank Diameter (Decimal Inch):
0.4375"
Shank Diameter (mm):
11.11mm
Overall Length (Inch):
2-3/4"
Overall Length (Decimal Inch):
2.7500"
Overall Length (mm):
69.85mm
Flute Length (Inch):
1"
Flute Length (Decimal Inch):
1.0000"
Flute Length (mm):
25.40mm
Number of Flutes:
4
interval quantity:
1
