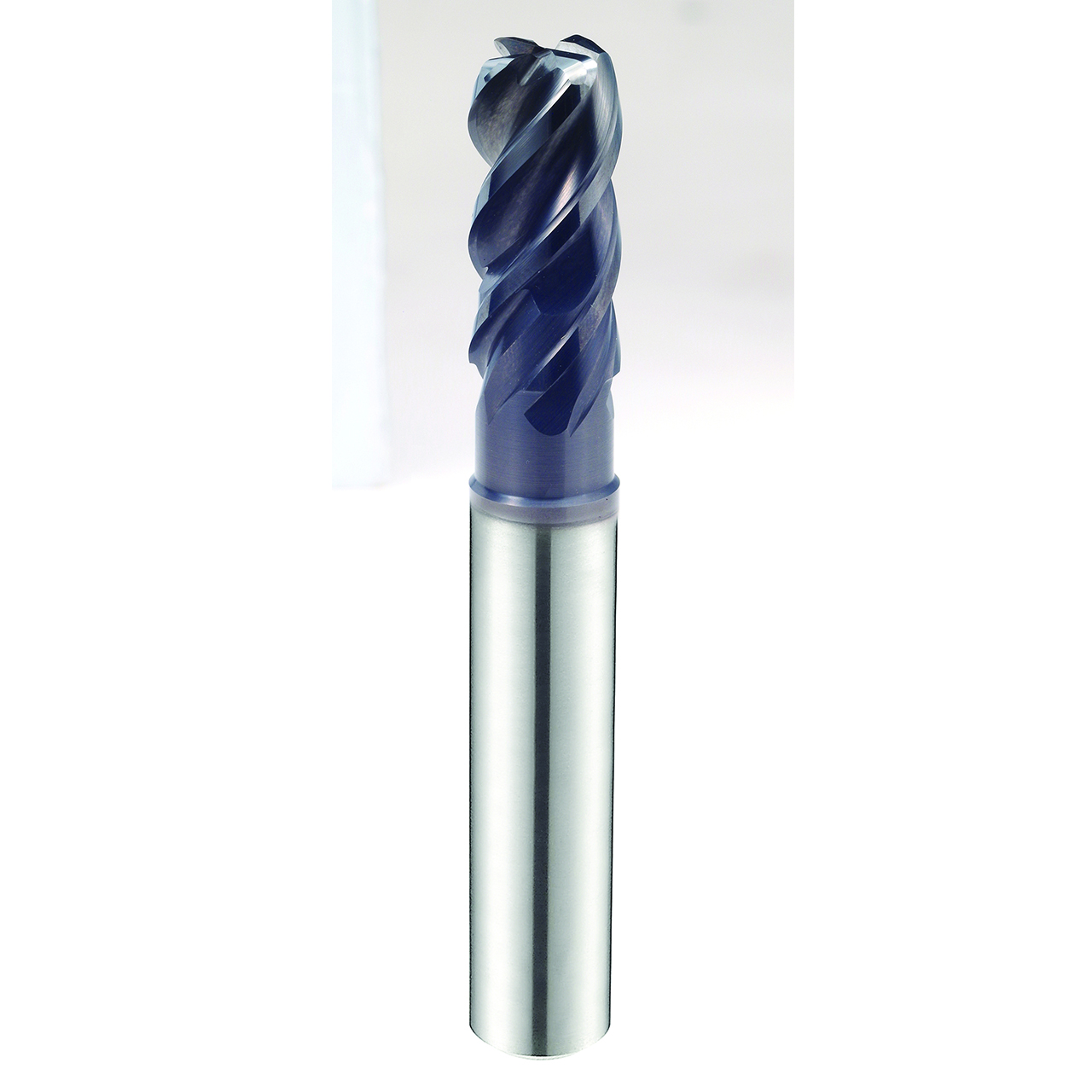

Product Specifications
| ETP Number | GMG40916 |
| Diameter (Decimal Inch) | 0.6299" |
| Diameter (Inch) | 17/27" |
| Diameter (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Decimal Inch) | 1.3780" |
| Length of Cut (Inch) | 1-17/45" |
| Length of Cut (mm) | 35.00mm |
| Length Below Shank (Decimal Inch) | 1.6929" |
| Length Below Shank (Inch) | 1-9/13" |
| Length Below Shank (mm) | 43.00mm |
| Overall Length (Decimal Inch) | 3.6220" |
| Overall Length (Inch) | 3-28/45" |
| Overall Length (mm) | 92.00mm |
| Corner Radius (Decimal Inch) | 0.1575" |
| Corner Radius (Inch) | 3/19" |
| Corner Radius (mm) | 4.00mm |
| Number of Flutes | 4 |
| Shank Style | Plain |
| Helix Angle | Variable |
| Coating | Y-Coating |
| Material | Carbide |
| Cut Type | Center Cut |
| Application | M,S |
| Cutting Direction | Right |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
17/27"
Cutting Diameter (Decimal Inch):
0.6300"
Cutting Diameter (mm):
16.00mm
Shank Diameter (Inch):
17/27"
Shank Diameter (Decimal Inch):
0.6300"
Shank Diameter (mm):
16.00mm
Length of Cut (Inch):
1-17/45"
Length of Cut (Decimal Inch):
1.3780"
Length of Cut (mm):
35.00mm
Overall Length (Inch):
3-28/45"
Overall Length (Decimal Inch):
3.6220"
Overall Length (mm):
92.00mm
Number of Flutes:
4
Shank Style:
Plain
Material:
Carbide
Cutting Direction:
Right Hand
Finish/Coating:
Y-Coating
interval quantity:
1
