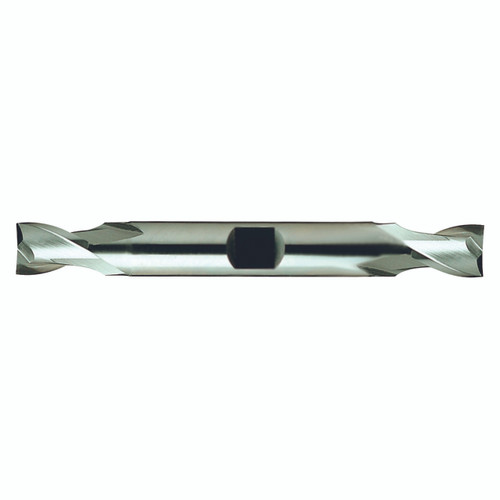

Product Specifications
| EDP Number | 11047HN |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (Inch) | 1/4" |
| Diameter (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.5000" |
| Length of Cut (Inch) | 1/2" |
| Length of Cut (mm) | 12.70mm |
| Overall Length (Decimal Inch) | 3.1250" |
| Overall Length (Inch) | 3-1/8" |
| Overall Length (mm) | 79.38mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | TiN |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1050 |
| End Type | Double End |
| Length Type | Regular |
| Product Type | Square End Mill |
