Product Specifications
| EDP Number | 88553 |
| Diameter (Decimal Inch) | 0.1300" |
| Diameter (Inch) | 1/8" |
| Diameter (mm) | 3.18mm |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Decimal Inch) | 1.5000" |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (mm) | 38.10mm |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall-Length-(Inch) | 3" |
| Overall Length (mm) | 76.20mm |
| Ball Nose Radius (Decimal Inch) | 0.0620" |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 3 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5078 |
| Center Line Angle (Degree) | 1.5 Degree |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| End Type | Single End |

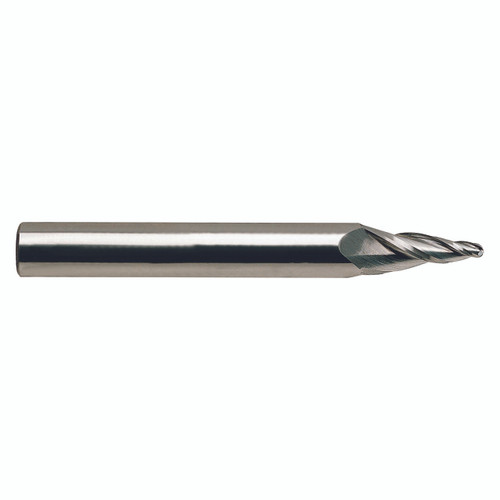

| Product Type | Ball End Tapered End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Material:
Carbide
End Type:
Single End
Small End Diameter (Inch):
1/8"
Small End Diameter (Decimal Inch):
0.1300"
Small End Diameter (mm):
3.18mm
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
38.10mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Number of Flutes:
3
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Helix Angle:
30 Degree
Finish/Coating:
Bright
