Product Specifications
| Manufacturer Part Number | DN515218 |
| Diameter (Inch) | 10/59" |
| Diameter (Decimal Inch) | 0.1695" |
| Diameter (mm) | 4.31mm |
| Shank Diameter (Inch) | 10/59" |
| Shank Diameter (Decimal Inch) | 0.1695" |
| Shank Diameter (mm) | 4.31mm |
| Flute Length (Inch) | 1-1/16" |
| Flute Length (Decimal Inch) | 1.0600" |
| Flute Length (mm) | 26.99mm |
| Overall Length (Inch) | 2-1/8" |
| Overall Length (Decimal Inch) | 2.1250" |
| Overall Length (mm) | 53.98mm |
| Point Length (Decimal Inch) | 0.0395" |
| Point Length (mm) | 1.00mm |
| Wire Size | #18 |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | TiN |

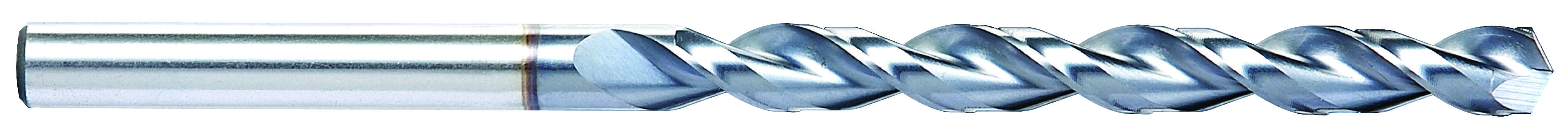

| Product Type | Screw Machine Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
1-1/16"
Flute Length (Decimal Inch):
1.0600"
Flute Length (mm):
26.99mm
Overall Length (Inch):
2-1/8"
Overall Length (Decimal Inch):
2.1250"
Overall Length (mm):
53.98mm
Material:
HSS-E
Finish/Coating:
TiN
interval quantity:
5
