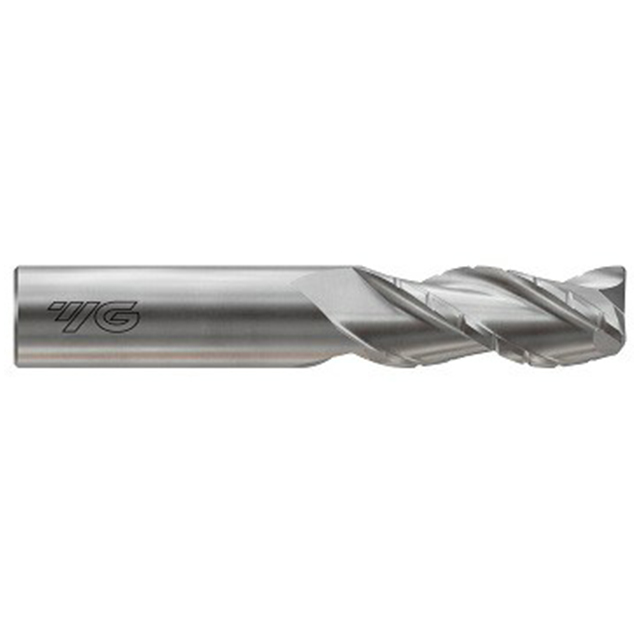

YG1 E5I38907 | 0.2500" Diameter x 0.2500" Shank x 0.6250" LOC x 2.5000" OAL x 0.0300" Radius 3 Flute Bright Coated Carbide Roughing End Mill

$30.51
SKU:
25233569
Weight:
0.06 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberE5I38907
Diameter (Inch)1/4"
Diameter (Decimal Inch)0.2500"
Diameter (mm)6.35mm
Shank Diameter (Inch)1/4"
Shank Diameter (Decimal Inch)0.2500"
Shank Diameter (mm)6.35mm
Length of Cut (Inch)5/8"
Length of Cut (Decimal Inch)0.6250"
Length of Cut (mm)15.88mm
Overall Length (Inch)2-1/2"
Overall Length (Decimal Inch)2.5000"
Overall Length (mm)63.50mm
Corner Radius (Inch)2/67"
Corner Radius (Decimal Inch)0.0300"
Corner Radius (mm)0.76mm
Number of Flutes3
SeriesE5I38
Helix Angle37 Degree
Shank StylePlain
CoatingBright
MaterialCarbide
Cut TypeCenter
Corner TypeCorner Radius
Type Corner Radius With Neck
Cutting DirectionRight
ApplicationN
