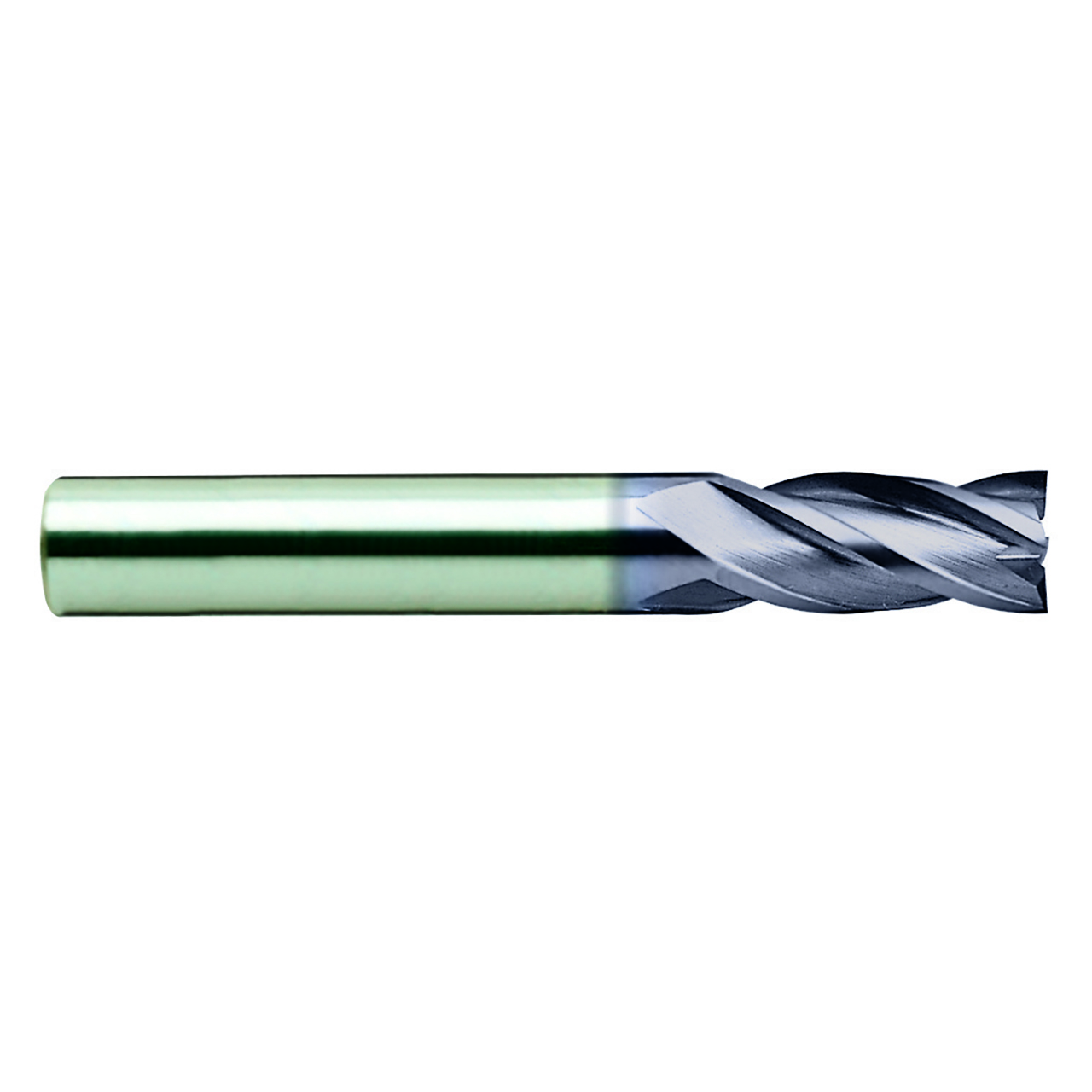

__06839.1694683851.jpg?c=2 "EH540(M).jpg")
Product Specifications
| EDP Number | EH540040 |
| Diameter (Decimal Inch) | 0.1600" |
| Diameter (Inch) | 3/19" |
| Diameter (mm) | 4.00mm |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Decimal Inch) | 0.4331" |
| Length of Cut (Inch) | 13/30" |
| Length of Cut (mm) | 11.00mm |
| Overall Length (Decimal Inch) | 1.9685" |
| Overall-Length-(Inch) | 1-31/32" |
| Overall Length (mm) | 50.00mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | EH540 |
| Coating | YG-Tylon F |
| Material | Carbide |
| Cut Type | Center |
| Length Type | Long |
| End Type | Single End |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Diameter (Decimal Inch):
0.1575"
Diameter (Inch):
3/19"
Diameter (mm):
4.00mm
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (Inch):
3/19"
Shank Diameter (mm):
4.00mm
Length of Cut (Decimal Inch):
0.4331"
Length of Cut (mm):
11.00mm
Overall Length (Decimal Inch):
1.9685"
Overall Length (mm):
50.00mm
Shank Style:
Plain
Helix Angle:
30 Degree
Material:
Carbide
Cut Type:
Center Cut
Cutting Direction:
Right
Number of Flutes:
4
interval quantity:
1
