Product Specifications
| Manufacturer Part Number | G9H83028N |
| Mill Diameter (Inch) | 7/16" |
| Mill Diameter (Decimal Inch) | 0.4375" |
| Mill Diameter (mm) | 11.11mm |
| Shank Diameter (Inch) | 7/16" |
| Shank Diameter (Decimal Inch) | 0.4375" |
| Shank Diameter (mm) | 11.11mm |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Helix | 30 Degree |
| Series | G9H83 |
| Coated | X-Coating |
| Material | Carbide |

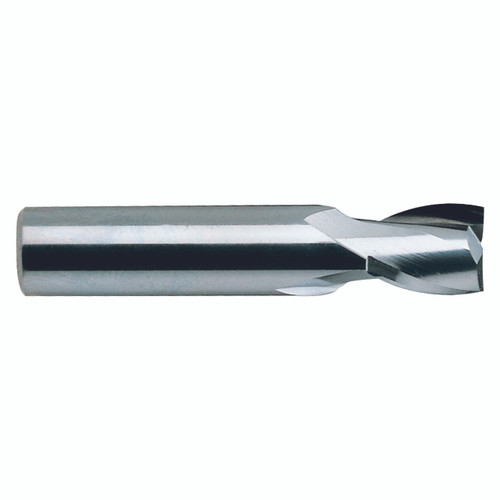

| Type | Square Stub single End |
| Corner Type | Square |
