Product Specifications
| EDP Number | TA345S |
| Size & Pitch | M7x1 |
| Diameter (Decimal Inch) | 0.2756" |
| Diameter (mm) | 7.00mm |
| Overall Length (Decimal Inch) | 3.5430" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Modified Bottoming |
| Overall Length (mm) | 89.99mm |
| Thread Length (Decimal Inch) | 0.4330" |
| Thread Length (mm) | 11.00mm |
| Square Length (Decimal Inch) | 0.3800" |
| Square Length (mm) | 9.65mm |
| Shank Diameter (Decimal Inch) | 0.3180" |
| Shank Diameter (mm) | 8.08mm |
| Square Size (Decimal Inch) | 0.2380" |
| Square Size (mm) | 6.05mm |
| Neck Diameter (Decimal Inch) | 0.2200" |
| Connection (mm) | 8.08 x 6.05mm |
| Connection (Decimal Inch) | 0.318 x 0.238" |
| Useable Length (Decimal Inch) | 1.1260" |
| Neck Diameter (mm) | 5.59mm |
| Drill Size (Decimal Inch) | 0.2398" |
| Drill Size (mm) | 6.09mm |
| Useable Length (mm) | 28.60mm |
| Thread Series | M |
| Pitch Limit | D5 |
| Chamfer Length | 2P-3P |
| Finish | Oxide |
| Blank Standard | DIN/ANSI |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 3 |
| Tap Type | SPFL |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | TA-S |
| Material | HSS-EX |

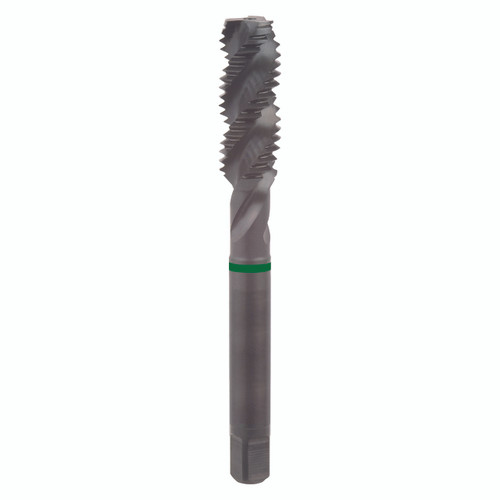

| Product Type | Spiral Flute Bottom Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
3
Chamfer:
2P - 3P
Material:
HSS-EX
Finish/Coating:
Oxide
Through Coolant:
No
interval quantity:
1
