Jig Feet Leveling Assemblies

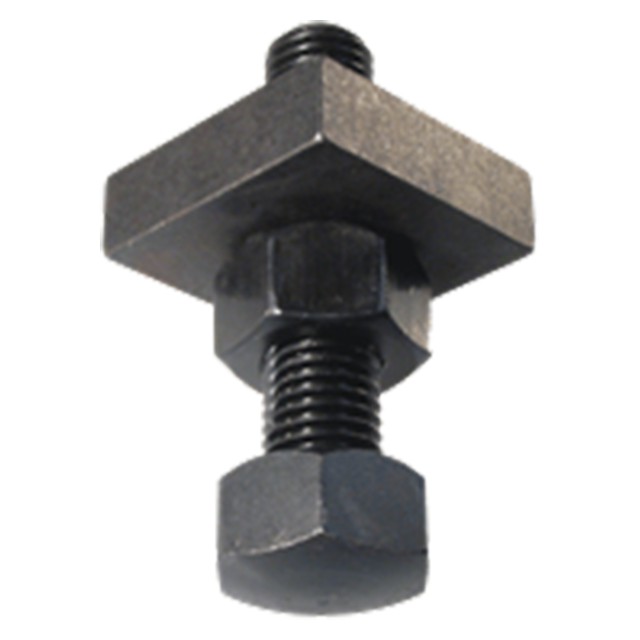

Heavy-duty leveling assembly includes a radius-head screw, tapped plate, and hex nut. Made in USA.
Application Information
Design Considerations & Safety Precautions
Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged in the standard plate. Safety factor = 2:1. Load capacity will drop significantly with longer studs.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Mild Steel | - | Black Oxide | Yes | Yes |
Parts Specification
| Thread Size | Thread Pitch (mm) | A (mm) | C (mm) | D (mm) | E (mm) | F (mm) | H (mm) | Load Rating (kg) |
| M16 | 2 mm | 100 mm | 24 mm | 16 mm | 51 mm | 51 mm | 16 mm | 3200 kg |
