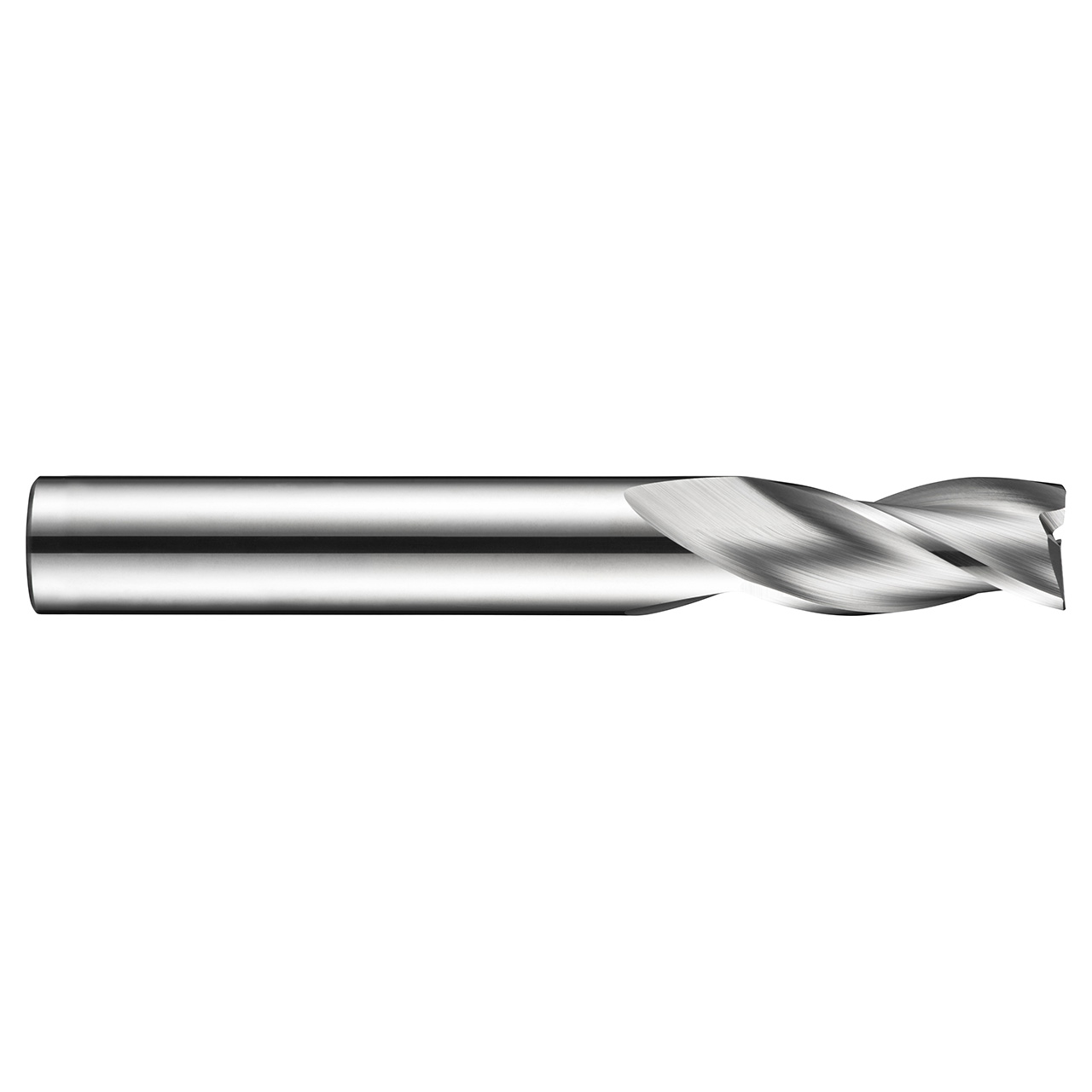

S903 3-flute slot drills are manufactured from premium carbide material for superior performance and extended tool life. They have a medium length flute design which makes the tool more rigid and suitable for profiling and milling standard slots. The bright finish ensures a cleaner, more accurate result by stopping workpiece material from sticking to the cutting edges of the tool. Suitable for milling steels, cast iron and stainless steels, the tools can be used for plunging, ramping and profile milling. S903 3-flute slot drills are an economical range of cutters and a smart choice for general milling of slots on most types of machine.
Max Depth of Cut (mm) | 19mm |
Connection Diameter (Inch) | 0.315" |
Cutting Diameter (Inch) | 0.2756" |
Overall Length (Inch) | 2.4803" |
Material Code | HM |
Radial Rake Angle | 12 |
No of Flute | 3 |
Flute Helix Angle | 30 |
Corner Chamfer Angle | 45 |
Corner Chamfer Width (mm) | 0.13mm |
Coating | Bright |
Surface Color | Bright Silver |
