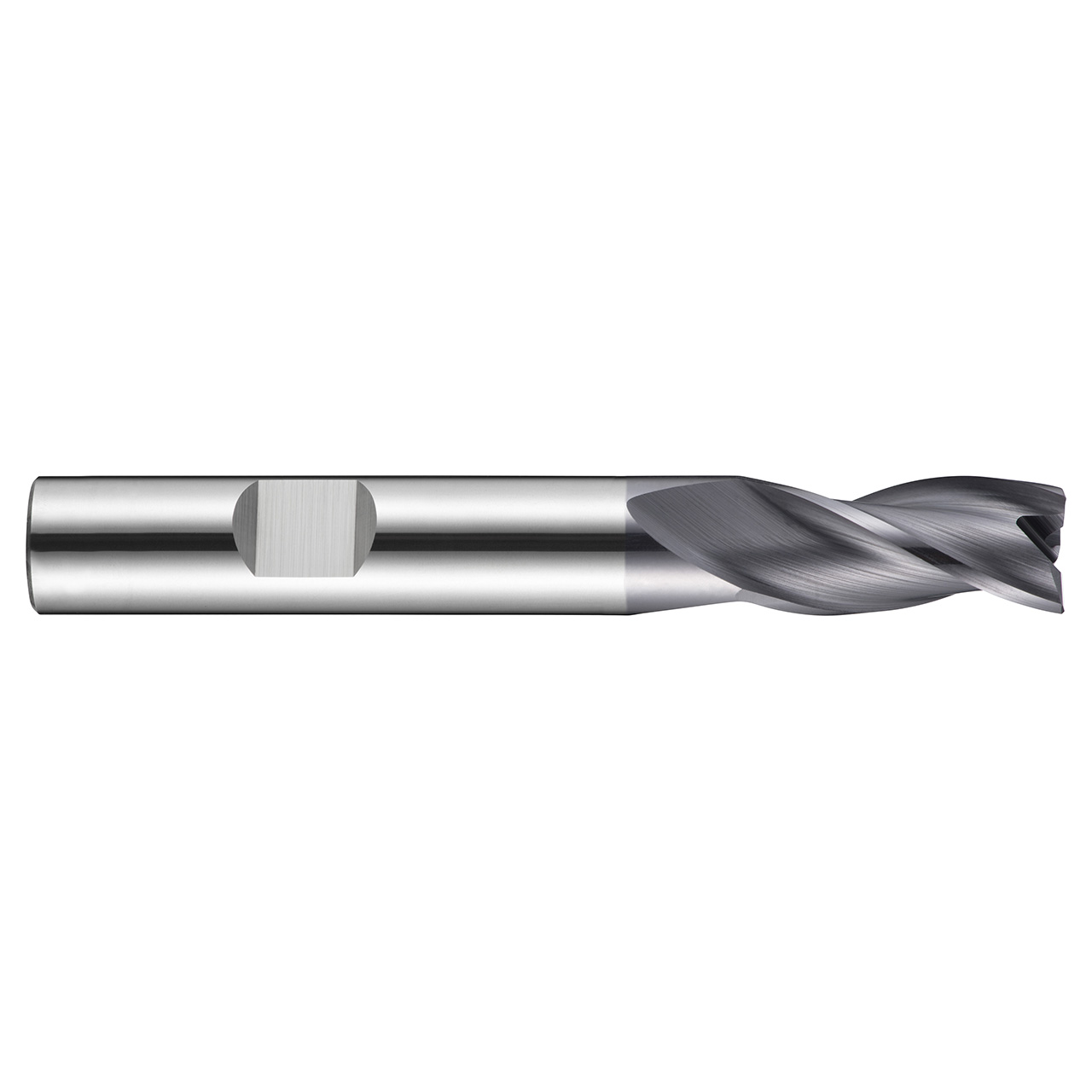

Dormer 5982851 | 7.00mm Diameter x 8.00mm Shank x 19.00mm Maximum Depth of Cut x 63.00mm OAL x 30 Degree Helix Angle 3 Flute TiAlN Coated HMS933 Square End Mill

SKU: 25139300 Weight: 0.09 LBS Minimum Purchase: 1 unit
UPC: 7320760040126
$99.70 $59.82
(You save $39.88)
Shipping: Calculated at Checkout

About This Item

Part of Dormer's great range of carbide milling cutters, S933 3-flute cutters are a good economical choice for general milling of slots on most types of machine and can be used for plunging, ramping and profile milling in stainless steels, steels and cast iron. With a medium length flute design, the extra rigidity provided makes them great for milling standard slots and profiling. S933 3-flute slot drills are manufactured from premium carbide for superior performance and longer tool life, whilst the titanium aluminium nitride coating further increases tool life and improves performance when milling materials which are difficult to machine.


Product Specifications
Max Depth of Cut (mm)19mm
Connection Diameter (Inch)0.315"
Cutting Diameter (Inch)0.2756"
Overall Length (Inch)2.4803"
Material CodeHM
Radial Rake Angle12
No of Flute3
Flute Helix Angle30
Corner Chamfer Angle45
Corner Chamfer Width (mm)0.13mm
CoatingTiAlN
Surface ColorBlack-Deep Purple
Country of originBrazil
