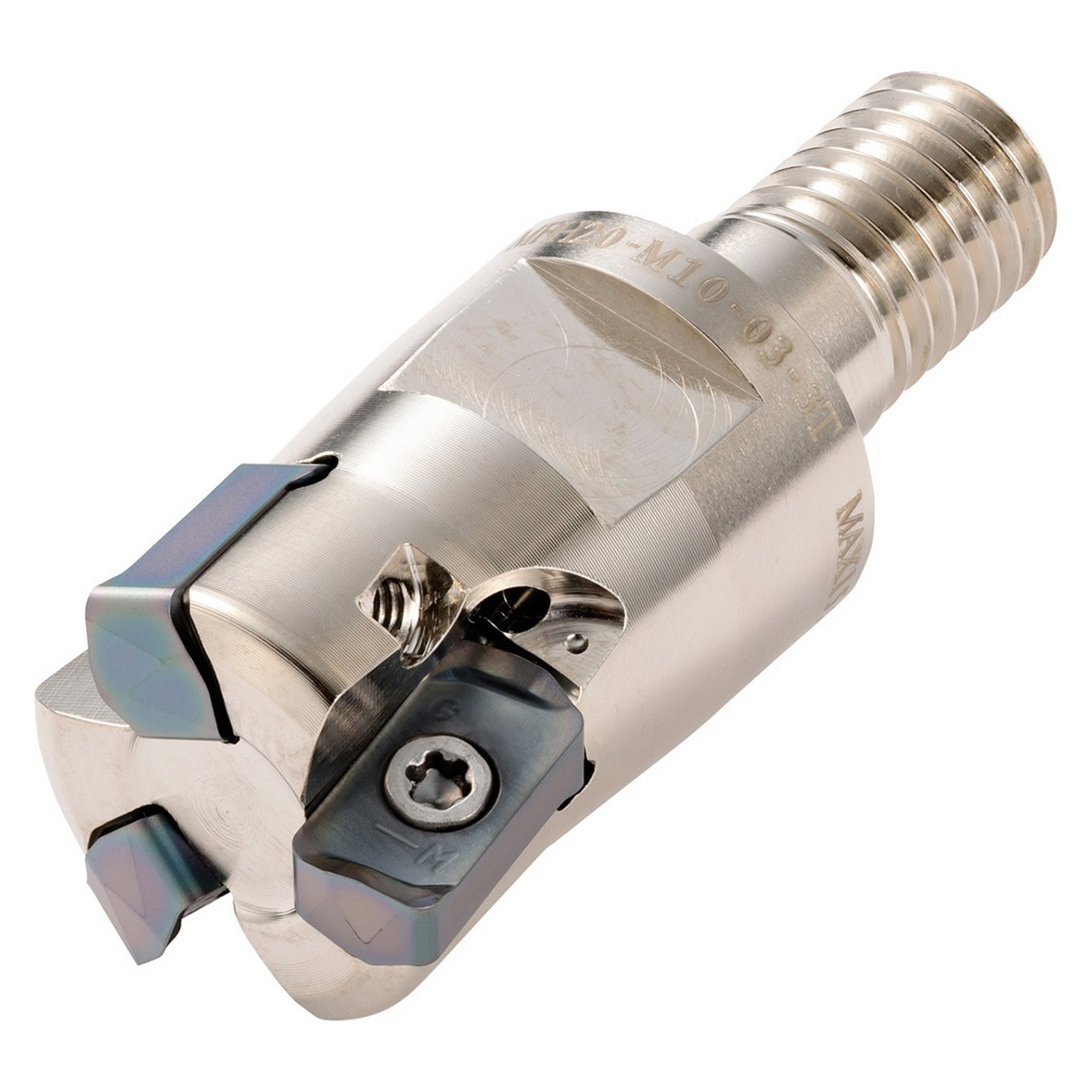

Features:
- Reduce cycle time during roughing applications
- Economical inserts with 4 cutting edges
- MFH-mini controls chip biting with convex cutting edge design
- Fine pitch availability for efficient machining
- Compatible with (5) LOGU03 style inserts
Product Specifications
| EDP Number | THN07576 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394" |
| Cutting Diameter (Decimal Inch) | 0.9350 - 1.2500" |
| Cutting Diameter (mm) | 23.75 - 31.75mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.9350" |
| Cutting Diameter Minimum (mm) | 23.75mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.2500" |
| Cutting Diameter Maximum (mm) | 31.75mm |
| Connection Diameter (Decimal Inch) | 0.6693" |
| Connection Diameter (mm) | 17.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.1811" |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Shank Height (Decimal Inch) | 0.9449" |
| Shank Height (mm) | 24.00mm |
| Application | Facing | Helical Milling | High Feed | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 5 |
| Number of Inserts | 5 |
| Shank Type | Modular Connection |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Series:
MFHI;Cutting Diameter (Inch)=1-1/4"""
Cutting Diameter (Decimal Inch):
1.2500"
Cutting Diameter (mm):
31.75mm
Insert Style:
MFH
Maximum Depth of Cut (Inch):
3/64"
Maximum Depth of Cut (Decimal Inch):
0.0394"
Maximum Depth of Cut (mm):
1mm
