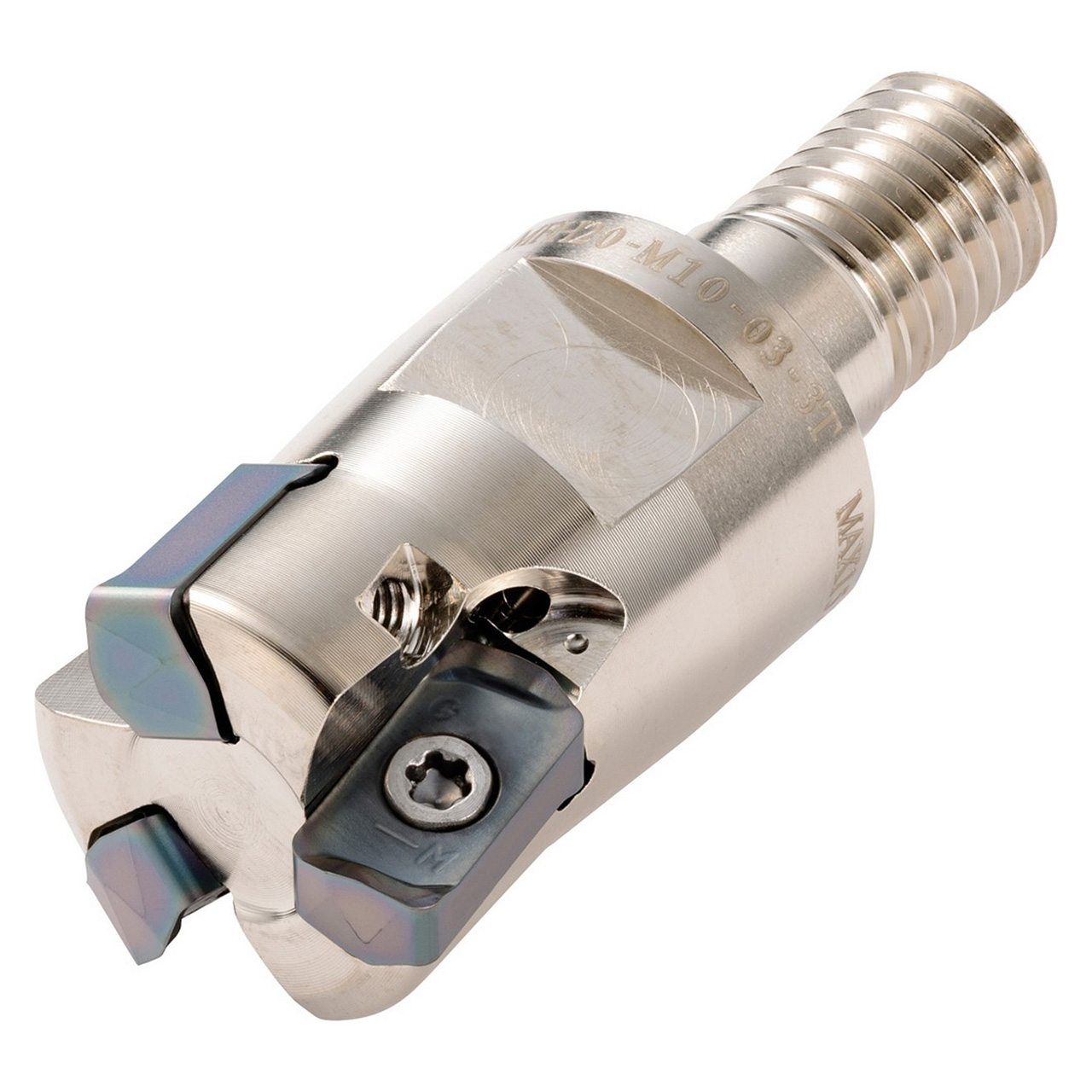

Features:
| EDP Number | THN07577 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394" |
| Cutting Diameter (Decimal Inch) | 0.9350 - 1.2500" |
| Cutting Diameter (mm) | 23.75 - 31.75mm |
| Cutting Diameter Minimum (Decimal Inch) | 0.9350" |
| Cutting Diameter Minimum (mm) | 23.75mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.2500" |
| Cutting Diameter Maximum (mm) | 31.75mm |
| Connection Diameter (Decimal Inch) | 0.6693" |
| Connection Diameter (mm) | 17.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.1811" |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Shank Height (Decimal Inch) | 0.9449" |
| Shank Height (mm) | 24.00mm |
| Application | Facing | Helical Milling | High Feed | Plunging | Ramping | Shouldering | Slotting |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 6 |
| Number of Inserts | 6 |
| Shank Type | Modular Connection |
