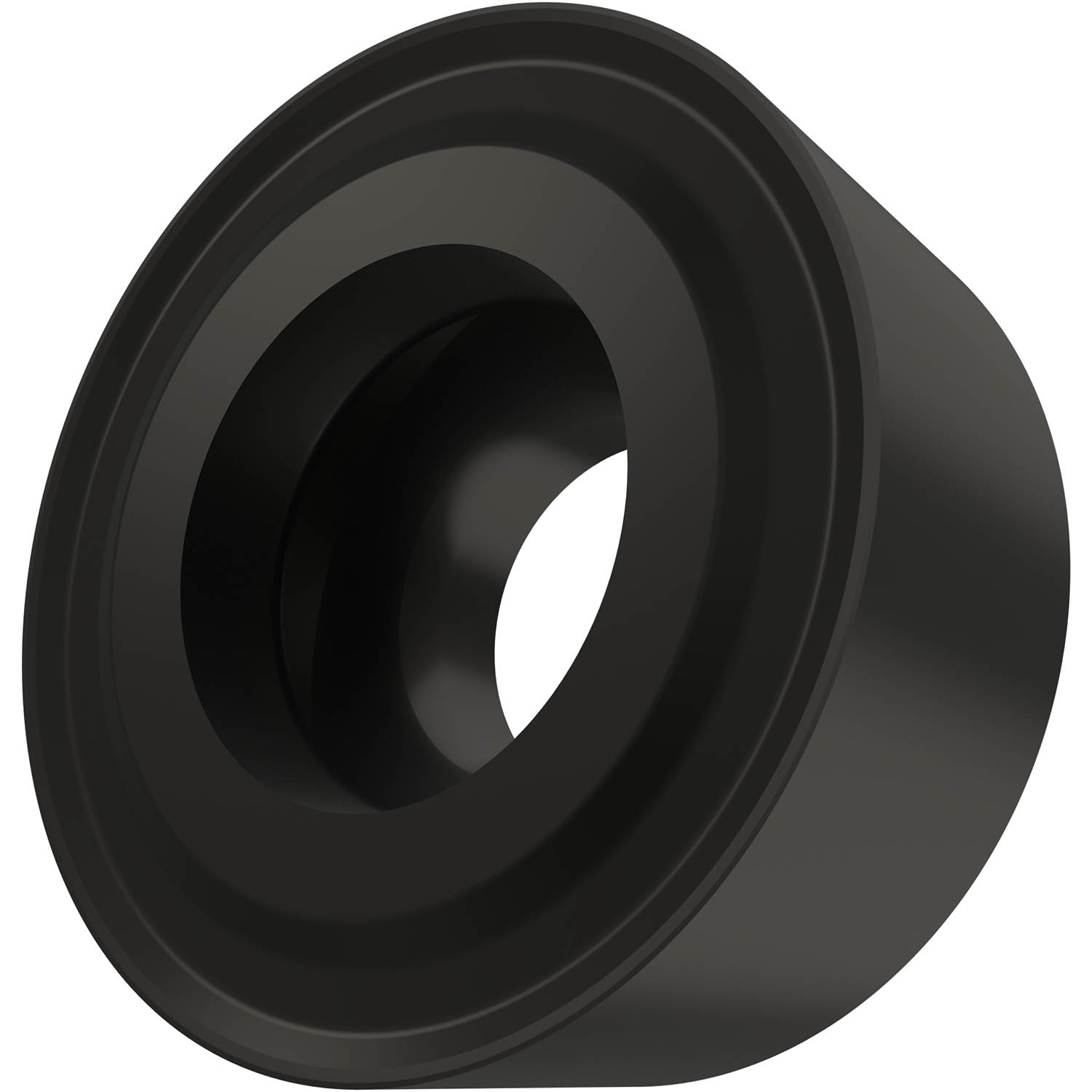

Single-sided positive turning insert, round with 7° clearance, a diameter of 12 mm, 4.76 mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10-M25, for fine to medium machining of stainless-steels.
Product Specifications
| EDP Number | 7156321 |
| Max Depth of Cut (mm) | 4.8 mm |
| Max Depth of cut (Inch) | 0.189" |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 4.4 mm |
| Fixing Hole Diameter (Inch) | 0.173" |
| Insert Diameter (mm) | 12 mm |
| 0.472" | |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Coating Process | MT-CVD |
| Coating | T7325 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.7 mm |
| Min Depth of Cut (Inch) | 0.028" |
| Chipbreaker Manufacturer's Designation | FM |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
interval quantity:
10
