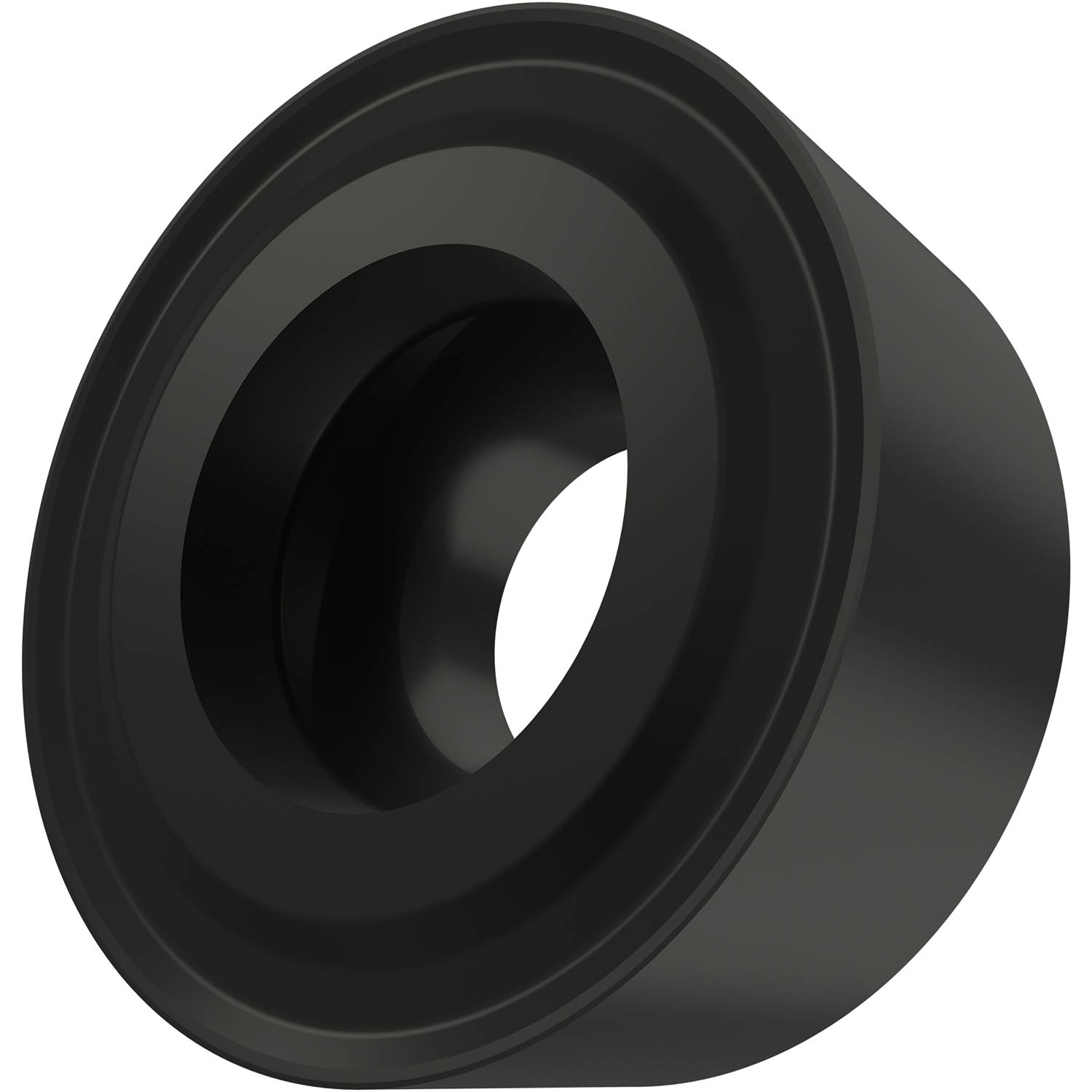

Single-sided positive turning insert, round with 7 Degree clearance, a diameter of 12 mm, 4.76 mm thick, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15-P35 and M10-M30, for fine to medium machining of steels and stainless-steels.
Product Specifications
| EDP Number | 6753986 |
| Max Depth of Cut (mm) | 4.8 mm |
| Max Depth of cut (Inch) | 0.189" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.4 mm |
| Fixing Hole Diameter (Inch) | 0.173" |
| Insert Diameter (mm) | 12 mm |
| 0.472" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Coating Process | MT-CVD |
| Coating | T9325 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.7 mm |
| Min Depth of Cut (Inch) | 0.028" |
| Chipbreaker Manufacturer's Designation | FM |
| Country of origin | Czech Republic |
