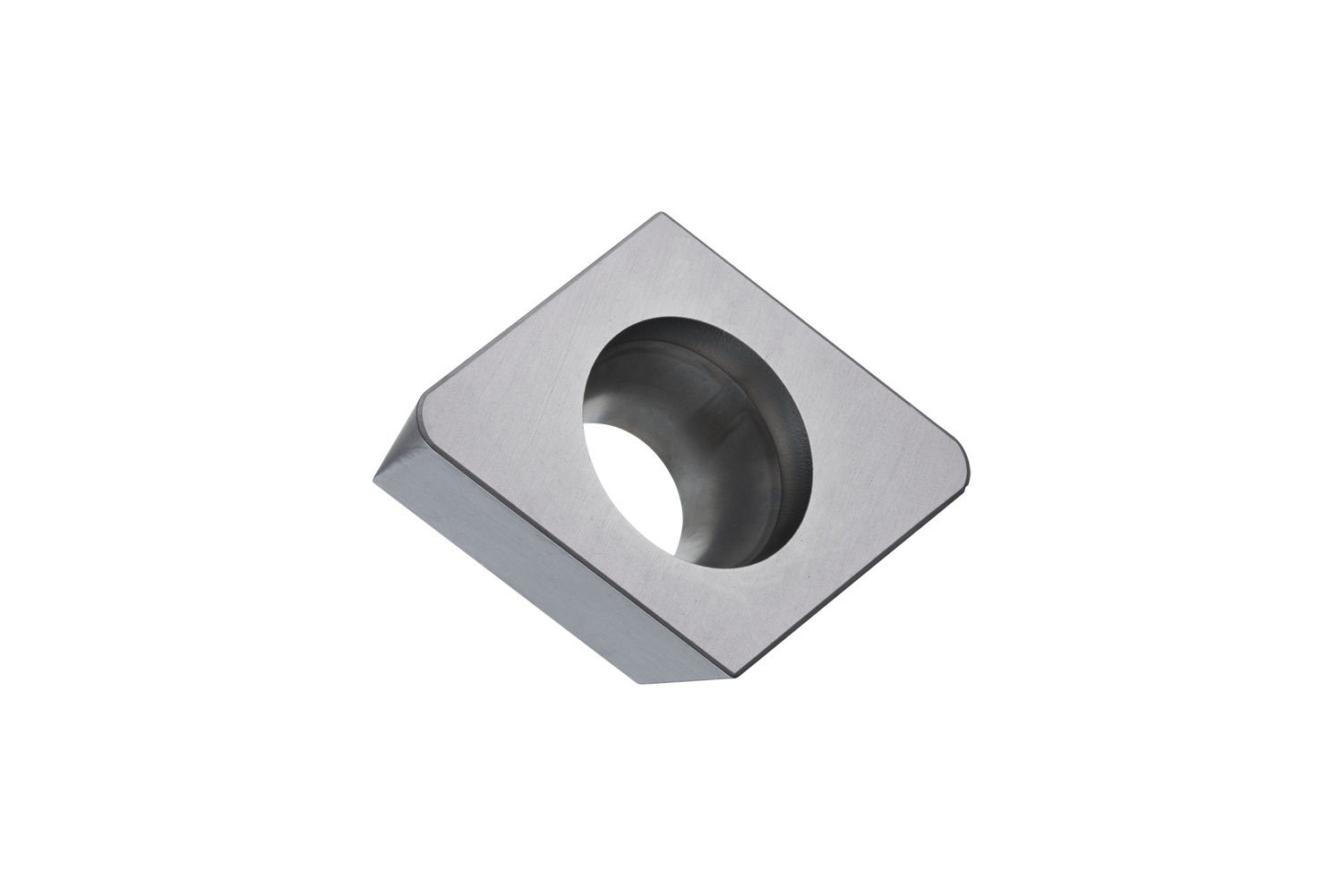

Single-sided milling insert XDHW 0702 with a plane rake surface, 70 Degree rhomboid for a maximum depth of cut of 1.0 mm, with 1.0 mm corner radius, an indexing accuracy according to ISO-tolerance class-H with rounded cutting edges and facet, M8325 PVD coated WC-(Ti, Ta, Nb)C-Co carbide.
Product Specifications
| EDP Number | 6756012 |
| Maximum Depth of Cut (mm) | 1 mm |
| Max Depth of Cut (Inch) | 0.039" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.95 mm |
| Fixing Hole Diameter (Inch) | 0.116" |
| Cutting Edge Length (mm) | 6.9 mm |
| Cutting Edge Length (Inch) | 0.272" |
| Inscribed Circle Diameter (mm) | 6.5 mm |
| Inscribed Circle Diameter (Inch) | 0.256" |
| Insert Thickness (mm) | 2.38 mm |
| Insert Thickness (Inch) | 0.094" |
| Corner Radius (mm) | 1 mm |
| Corner Radius (Inch) | 0.039" |
| Coating Process | PVD |
| Coating | M8325 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.2 mm |
| Min Depth of Cut (Inch) | 0.008" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
10
