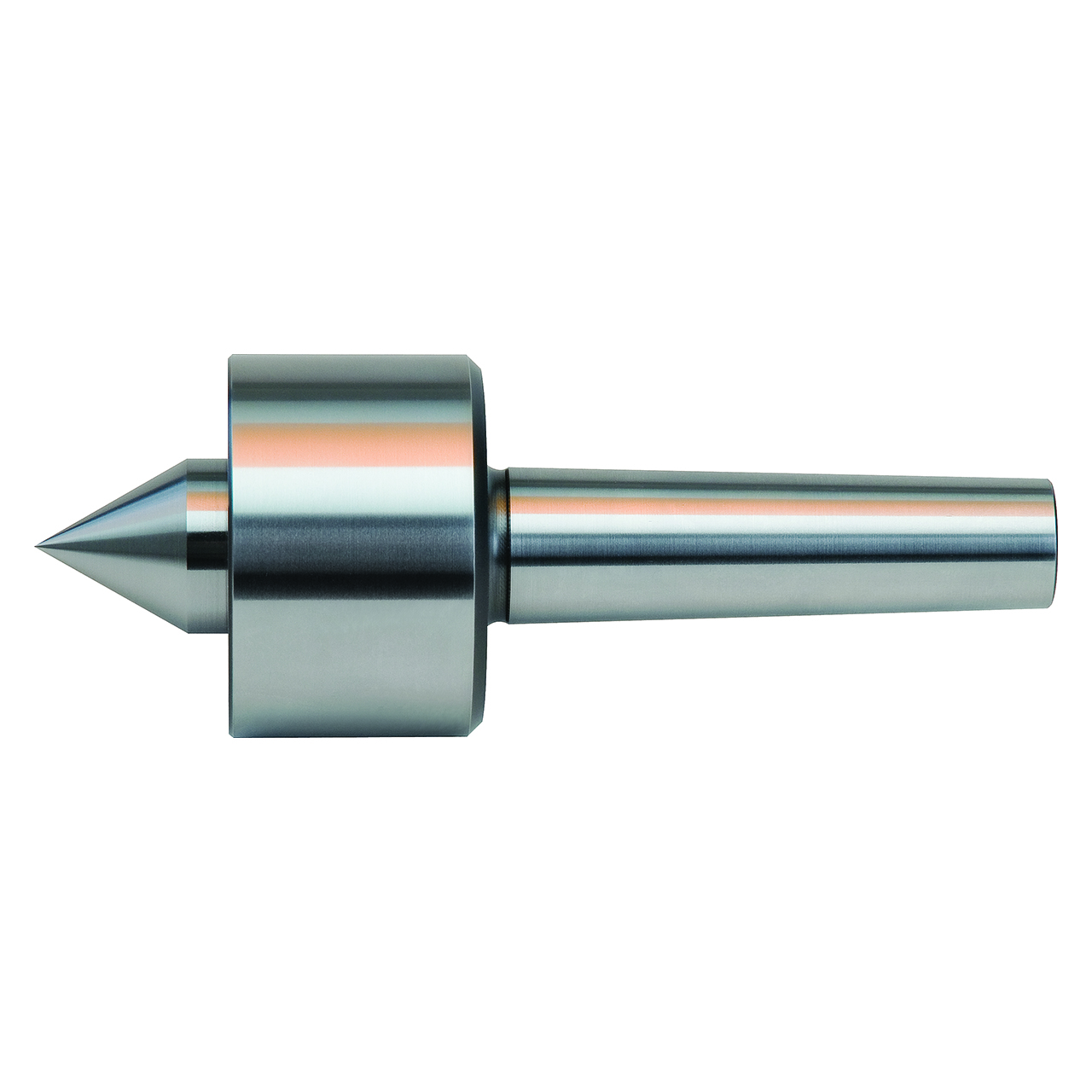

Riten 48602 | 2 Morse Taper 1.000" Diameter x 1.250" Length ± 0.00005 Accuracy Live Center

$406.00 $393.82
(You save $12.18)
Brand:
Riten
Length (Inch):
1"
Length (Decimal Inch):
1.2500"
Length (mm):
31.75mm
Diameter (Inch):
1"
Diameter (Decimal Inch):
1.0000"
Diameter (mm):
25.40mm
interval quantity:
1
SKU:
50005945
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Related Products

Features:

  • Accuracy guaranteed to ± 0.00005
  • Two angular contact bearings for superior performance in a compact design
  • Points are through-hardened to 61-63 Rc
  • Full-length spindle for extra rigidity
  • Long point configuration allows for tool clearance
  • Body heat-treated for additional strength

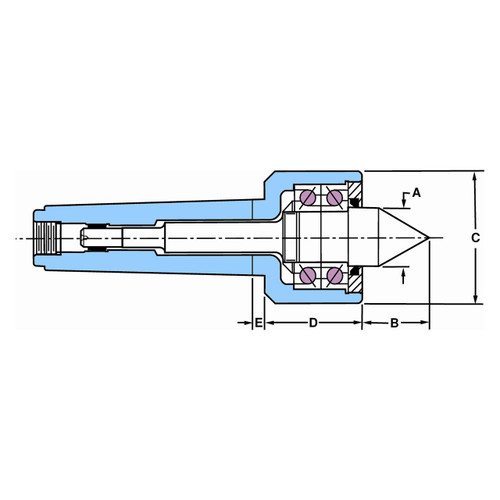

Product Specifications
# MFG48602
Taper2 Morse
Accuracy± 0.00005
Point Length (Inch)1.250"
Max Workpiece Weight (lbs)440 lbs.
Head Length (Inch)1.750"
Head Diameter (Inch)2.375"
Max RPM4000
Point Diameter (Inch)1.000"
Gage Line to Back of Head (Inch)0.250"
Point StyleStandard Point
SeriesRegal Live Centers
