Features:
- Accuracy guaranteed to ± 0.00005.
- Meets the rigid requirements of CNC turning
- Points configuration allows for tool clearance
- Body heat-treated for additional strength
Product Specifications
| # MFG | 51695 |
| Taper | 5 Morse |
| Accuracy | ± 0.00005 |
| Point Length (Inch) | 2.000" |
| Max Workpiece Weight (lbs) | 4400 lbs. |
| Head Length (Inch) | 3.313" |
| Head Diameter (Inch) | 2.875" |
| Max RPM | 5000 |
| Point Diameter (Inch) | 1.250" |
| Gage Line to Back of Head (Inch) | 0.375" |
| Carbide Tip Diameter (Inch) | 0.875" |

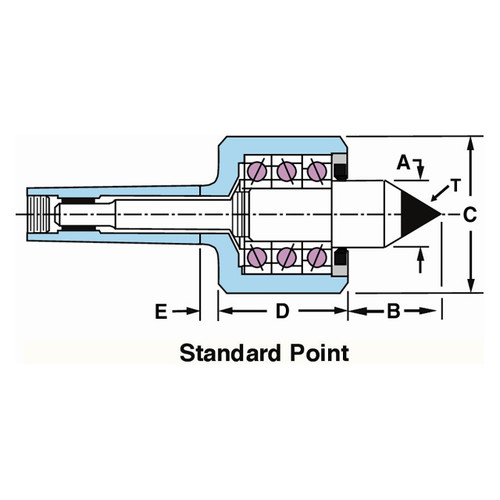

| Point Style | Standard (Carbide Tipped) |
| Series | Advantage (Carbide Tipped) Live Centers |
