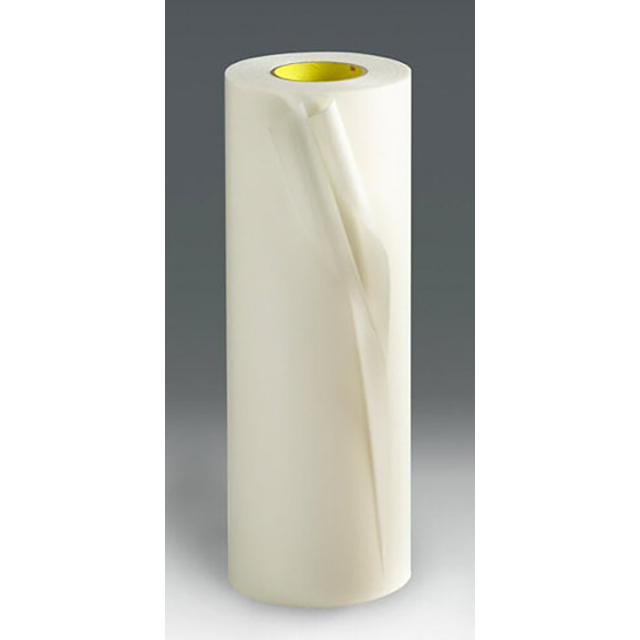

3M 7000049173 | Cushion-Mount 15.24mm Overall Length x 18.000" Width x 0.11mm Thickness Differential Acrylate E1040 Plate Mounting Tape - White

$668.13 $554.55
(You save $113.58)
Brand:
3M
Adhesive Type:
Differential Acrylate
Color:
White
Primary Liner Thickness (mm):
0.11mm
Overall Width (Inch):
18"
Overall Width (Decimal Inch):
18.0000"
Overall Width (mm):
457.20mm
Overall Length (ft):
50.000ft
Overall Length (mm):
15.24mm
Overall Thickness (mil):
42.000mil
SKU:
96005664
UPC:
50048011568039
Weight:
8.00 LBS
Shipping:
Free Shipping

3M Cushion-Mount Plus Plate Mounting Tape E1040 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This white foam mounting tape provides high quality standard combination print.

Features:

  • 0.040 Inch (1.02 Mm) Double Coated Foam Tape Has The Air Release Feature With A Plate Side Adhesive Technology Designed To Remove With Less Force From Flexographic Print Plates
  • Has A Standard Medium Density Foam That Is Ideal For Printing Combinations Of Solids And Process With Halftone Dots
  • The White Foam Color Indicates The Standard, Medium Density Foam
  • Securely Bonds The Flexographic Photopolymer Plate To The Print Sleeve Or Steel Cylinder To Prevent Plate Edge Lifting During Printing
  • Print Plates Mounted On E1040 Will Have No Air Bubbles Under The Plate Due To The Air Release Feature Designed Into The Tape
  • Grooves In The Adhesive Are Created By A Cross-Hatch Pattern From The Release Liner
  • Plate Easily Demounts From The Double Coated Cushioned Tape Without Adhesive Residue
  • Tape Also Removes Cleanly From The Sleeve Or Steel Print Cylinder
  • Flexographic Printing, Flexographic Printers
  • Cushioned Flexographic Plate Mounting Sticky Back Foam Tape

Product Specifications
Manufacturer Part Number7000049173
Sub BrandCushion-Mount
Adhesive TypeDifferential Acrylate
Overall Length (Decimal Inch)50.000ft
Overall Length (mm/cm)15.24mm
Overall Thickness (Decimal Inch)42.000mil
Overall Width (Decimal Inch)18.000"
Overall Width (mm/cm)457.20mm
Primary LinerPolycoated Polyester
Primary Liner Thickness (mm)0.11mm
Product ColorWhite
Product NumberE1040
Product TypePlate Mounting Tape

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
