Description

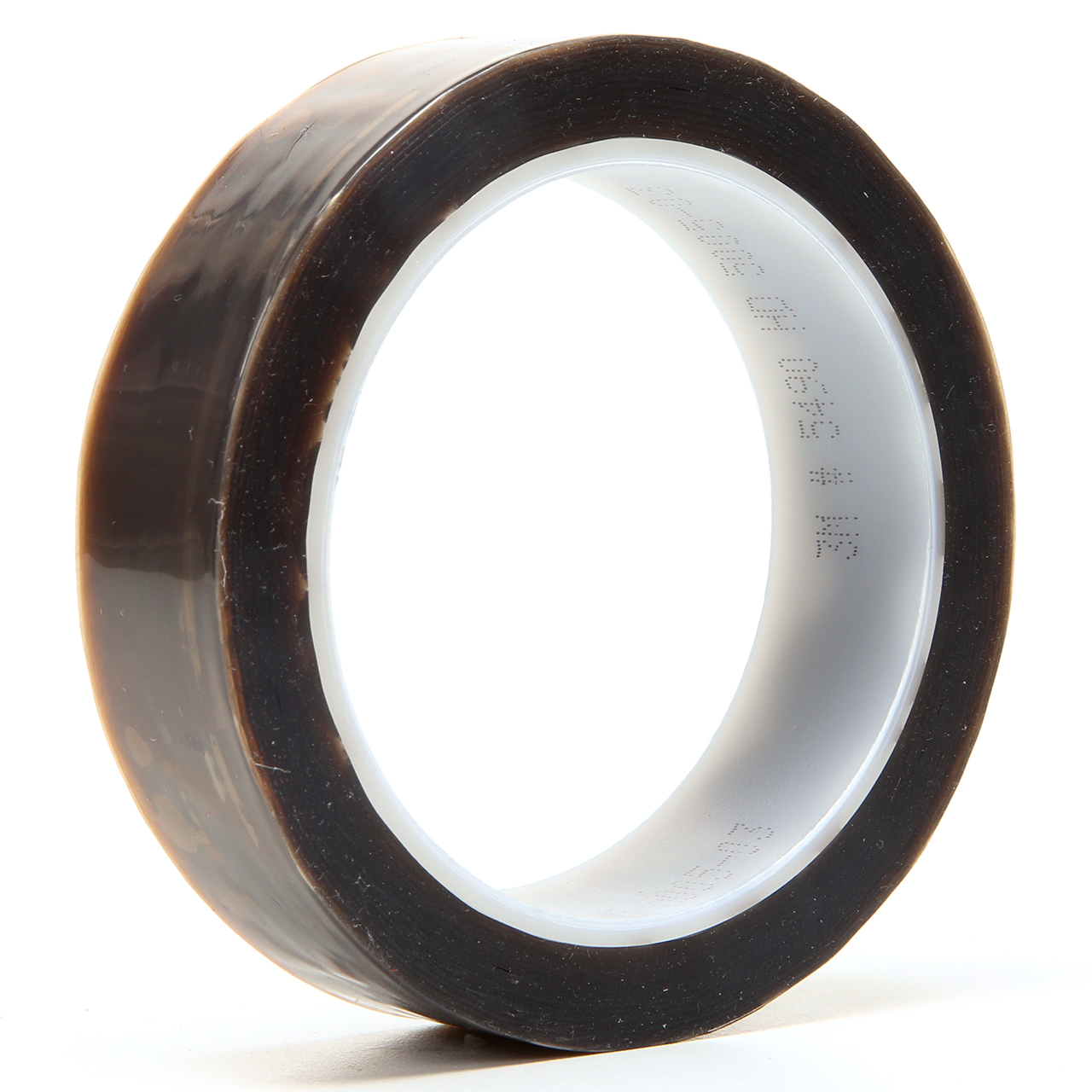

The 3M 7000050120 is an extruded PTFE film Tape 5490 supplied as a 36 yard PTFE tape roll for industrial anti stick and release applications. This tape uses an extruded polytetrafluoroethylene film backing with a pressure sensitive silicone adhesive to provide a low coefficient of friction and reliable clean removal. Use it to reduce friction between moving surfaces, line chutes and ducts, and provide mold release in composite bonding and web processing. The tape resists chemicals and abrasion and operates across a wide ptfe tape temperature range -65°F / -54°C to 500°F / 260°C, making it suitable for heated machinery and harsh environments. Buyers seeking a high performance, non-stick surface for production or maintenance will value the repeatable release and long roll length for continuous processes.
Product Features and Benefits
Extruded PTFE film backing for flat, uniform release
Extruded polytetrafluoroethylene film lies flatter than skived PTFE, resisting curl and providing a consistent low-friction surface for web and roll-wrap applications.
Silicone adhesive with clean removal
3M PTFE film Tape 5490 features pressure sensitive silicone adhesive that offers good initial tack and clean removal from a variety of substrates, minimizing residue on belts and plates.
Wide operating temperature and chemical resistance
Rated for a 3M ptfe tape temperature range of -65°F (-54°C) to 500°F (260°C) and excellent chemical resistance, suitable for heated tooling and temporary chemical barriers.
High strength and abrasion resistance for moving parts
Robust film and adhesive construction reduce wear, eliminate squeaks and rattles, and extend service life in chute lining and noise reduction applications.
Frequently Asked Questions
Is this the same as other 3M ptfe tape used for release and lining?
Yes, 3M 7000050120 is a purpose built ptfe tape designed for release, chute lining and web processing applications.
What is the backing material for this tape?
The backing is extruded polytetrafluoroethylene film, which provides a flatter, more uniform non-stick surface than skived film.
What is the ptfe tape temperature range for 3M PTFE film Tape 5490?
Operating temperature is -65°F (-54°C) to 500°F (260°C), suitable for heated machinery and tooling.
Does this product refer to 3m 5490 specification?
Yes, this product is the 3M 5490 PTFE film tape in the 36 yard format and matches 3m 5490 performance characteristics.
