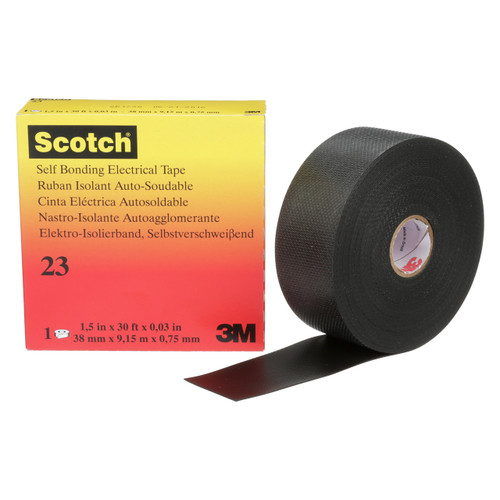

3M 7000138529 | 23-1.5X30FT Scotch 30' OAL x 1.500" Width x 30.0 mil Thickness Rubber Splicing Tape

$53.65
Ships:
From Manufacturer
Brand:
3M
Length (ft):
30'
Width (Inch):
1-1/2"
Width (Decimal Inch):
1.5000"
Width (mm):
38.10mm
Color:
Black
interval quantity:
20
Ships:
From Manufacturer
SKU:
96006219
UPC:
 07891040003976
Weight:
15.50 LBS
Minimum Purchase:
20 units
Shipping:
Free Shipping

Scotch tape 23 is a 30 mil, premium grade, highly conformable, rubber splicing tape. The self fusing tape has a special polyester liner, which will not stick to the tape upon unwind. It withstands temperatures up to 194 °F (90 °C).

Scotch Rubber Splicing Tape 23 by 3M

Scotch Rubber Splicing Tape 23 by 3M is used for primary insulation for cable splice and termination applications and is compatible with solid dielectric cable insulation. The premium-grade adhesive features a polyethylene liner backed by self-fusing Ethylene Propylene Rubber (EPR), making this splicing tape easy to unwind.

This thick adhesive is temperature rated to 194 °F (90 °C) with an emergency overload rating to 266 °F (130 °C). To use, stretch tape and apply in successive half-lapped layers. Continue this process throughout the entire application until the build-up produces a uniform winding.

This tape is halogen-free and has a shelf life of 5 years. For wire splicing and insulation, applications depend on Scotch Rubber Splicing Tape 23.

Scotch Rubber Splicing Tape 23 is RoHS and Prop 65 compliant and self-certified to ASTM D4388, Type III up to 69 kV.

Features
  • CONFORMABLE: Made with highly conformable ethylene rubber (EPR)
  • PRIMARY INSULATION USE: Used for primary insulation for cable splice and termination applications up to 69kV (ASTM D4388, Type III)
  • COMPATIBLE: Compatible with solid dielectric cable insulation
  • HIGH HEAT USE: Operating temperature rated to 194 °F (90 °C) with an emergency overload rating to 266 °F (130 °C)
  • EASY TO HANDLE: Unwinds without sticking due to the polyethylene liner
  • COMPLIANCE: RoHS and Prop 65 Compliant, Self-certified to ASTM D4388, Type III up to 69 kV (test report available)
  • PRODUCT SPECS: tape thickness is 30 +/- 3.0 mils (0.76 +/- 0.076mm), minimum tensile strength is 250 psi (1.7 MPa), and minimum elongation 700%
  • COMPLIANCE INFORMATION: For more compliance information, visit www.3m.com/regs

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
