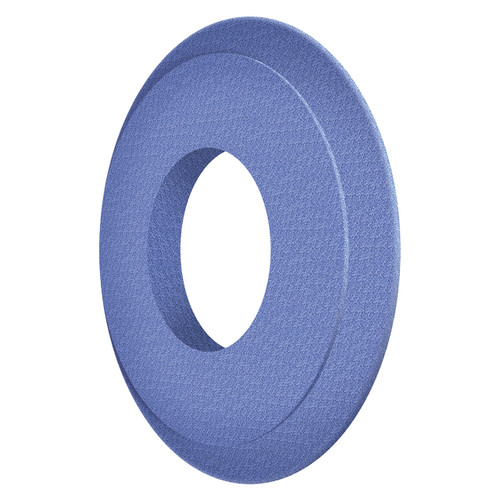

3M Cubitron II Resin Bond Grinding Wheel 93BH is a resin bonded wheel featuring a mix of green silicon carbide, monocrystalline aluminum oxide and 3M Precision-Shaped Grains with geometrically defined cutting edges for conventional hot roll grinding operations. These wheels are suitable for high speed steel, cast iron, high and low chrome, as well as continuous pouring cladding (CPC) rolls.
Features:
- Ideal for conventional grinding operations of hot mill rolls
- Ceramic 3M Precision-Shaped Grains are constructed of geometrically defined cutting edges
- Suitable for use on high speed steel (HSS), cast iron, high and low chrome and continuous pouring cladding (CPC) rolls
Product Specifications
Manufacturer Part Number | 7010353969 |
Center Hole Diameter (Inch) | 8.0" |
Center Hole Diameter (mm) | 203.2mm |
Overall Diameter (Inch) | 18.0" |
Overall Diameter (mm) | 457.2mm |
Overall Thickness (Inch) | 0.394" |
Overall Thickness (mm) | 10.0mm |
Wheel Type | T1F |
Product Form | Wheel |
Product Number | 93BE |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
