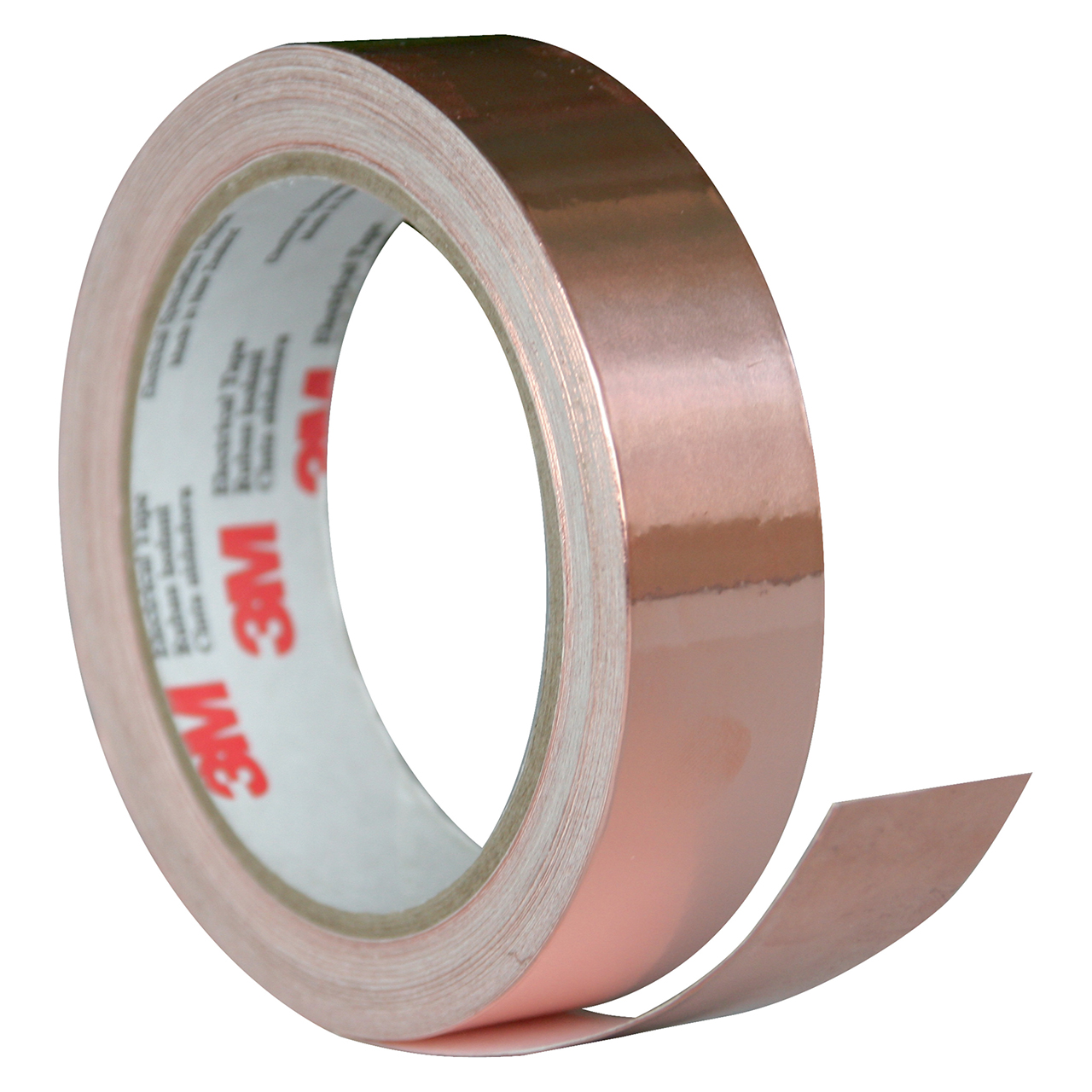

3M 7010398758 | 1181 1.5"X18YD 1.500" Width Copper Tape

Description

The 3M 7010398758 1181 copper foil tape is a point-to-point conductive EMI shielding tape designed to ensure reliable electrical contact, grounding, and static discharge management in electronic assemblies and shielded enclosures. The tape has a dead-soft copper foil backing that is bonded to an electrically conductive acrylic adhesive, resulting in low contact resistance between the foil and the substrate while resisting oxidation and discoloration for long service life. This 3M 1181 copper foil tape comes with a removable liner for easy die cutting and handling. It is flame retardant and rated for 600 V dry applications, making it ideal for board-level shielding, chassis grounding, cable repairs, and seam sealing in shielded rooms. The conductive adhesive formulation ensures consistent electrical continuity without the need for soldering; installers benefit from the tape's conformability to irregular surfaces and precise placement made possible by the liner. When you need a reliable copper shielding tape with UL listing and RoHS 2011/65/EU compliance for production and repair environments, look no further than 3M 7010398758.

Product Features and Benefits

Dead-soft copper foil backing for low-resistance contact

Soft copper foil conforms to uneven surfaces and provides excellent conductivity for point-to-point shielding and grounding tasks, ensuring reliable electrical paths.

Electrically conductive acrylic adhesive

The 3M 1181 copper foil tape conductive adhesive reduces interface resistance between foil and substrate, enabling effective EMI shielding without additional conductive fasteners or soldered joints.

Removable liner for die-cutting and neat handling

Liner-backed format simplifies die cutting, precise placement, and handling during assembly, reducing waste and improving repeatability in production use.

600 V rated and flame retardant

The 3M 1181 is rated for 600 V dry applications and manufactured to flame-retardant standards; the tape suits many electrical isolation and grounding requirements.

UL listed and RoHS compliant

The 3M EMI Shielding tape meets recognized safety and environmental standards to support regulated manufacturing and field service applications requiring certified materials.

Frequently Asked Questions

What is copper shielding tape used for?

Copper shielding tape is used for EMI/RFI shielding, grounding, and static discharge control on enclosures, boards, and cables.

Is this 3M copper foil tape conductive through the adhesive?

Yes, the conductive acrylic adhesive provides electrical continuity between the copper foil and the substrate surface.

Can 3M 1181 copper foil tape be used for grounding and seam sealing?

Yes, it is suitable for grounding, seam sealing in shielded rooms, and point-to-point electrical contact applications.

Does this tape meet safety and environmental standards?

Yes, 3M 7010398758 is UL listed and RoHS 2011/65/EU compliant for regulated manufacturing and service use.
