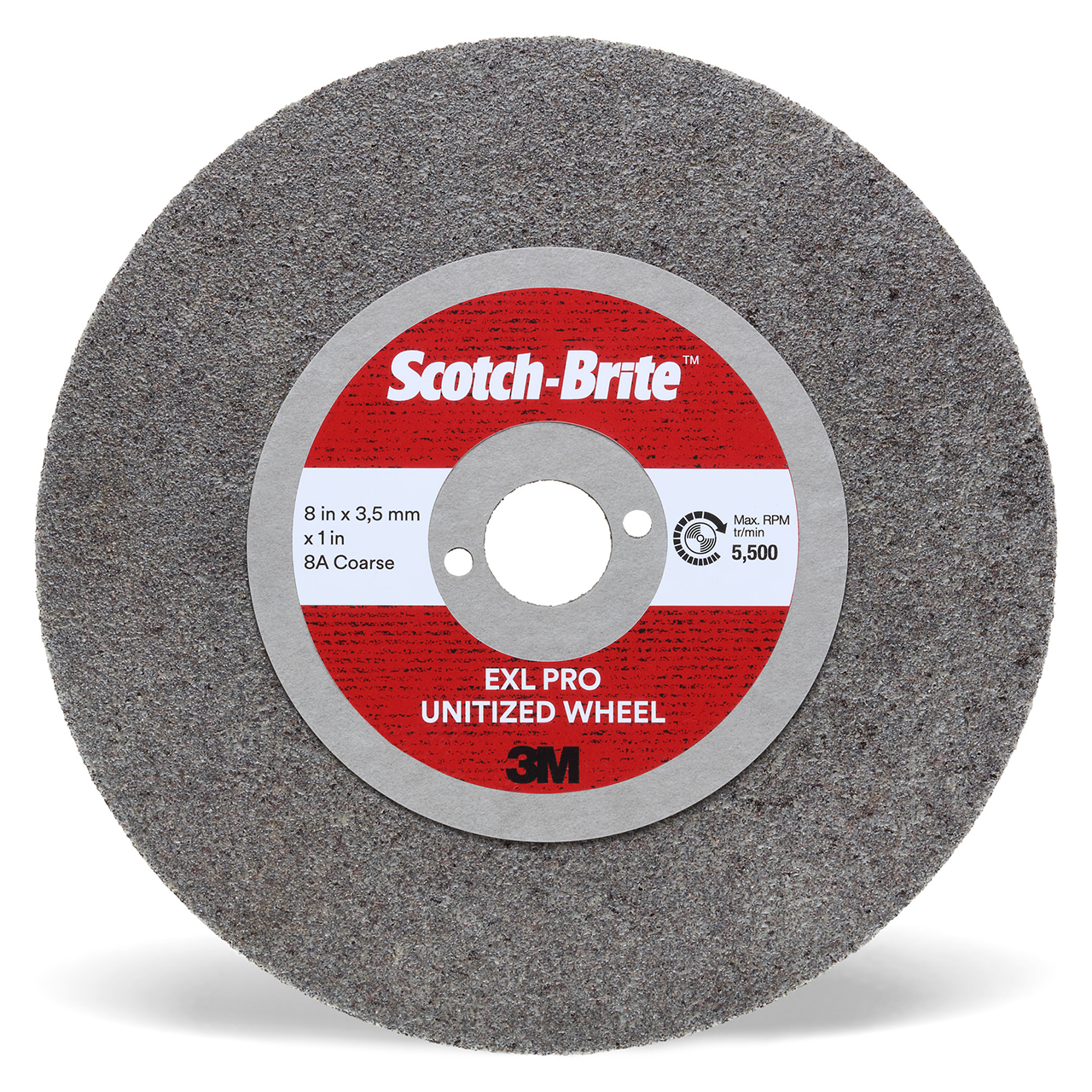

The Scotch-Brite EXL PRO unitized wheel is a tough nonwoven abrasive wheel designed for laser braze finishing applications on silicon bronze. This wheel delivers a clean edge and resists smearing, reducing the need for additional clean up and preparation, and resists heat buildup to help deliver a clean and smooth finish.
Features:
- Designed to blend and finish silicon bronze parts for laser brazing
- Open web construction resists loading and extends effective service life
- Tough, layered, unitized construction can operate clockwise or counterclockwise directions
- Resists smearing for cleaner surfaces and less preparation
- Minimizes heat build up to lessen impact on heat-sensitive materials
Product Specifications
| Manufacturer Part Number | 7100133720 |
| Legacy SKU | 61500318763 |
| Center Hole Diameter (Inch) | 1.0" |
| Center Hole Diameter (mm) | 25.4mm |
| Face Width (Inch) | 0.157" |
| Form Type | Unitized |
| Abrasive Material | Aluminum Oxide |
| Face Width (mm) | 4.0mm |
| Overall Diameter (Inch) | 8.0" |
| Overall Diameter (mm) | 203.2mm |
| Maximum Speed | 5500.0 RPM |
| Grade | Coarse |
| Grit | Non Pertinent |
| Capabilities | Assembly |
| Product Form | Wheel |
| Application | Finishing, Deburring |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
3M
Material:
Aluminum Oxide
Wheel Diameter (Inch):
8"
Wheel Diameter (Decimal Inch):
8.0000"
Wheel Diameter (mm):
203.20mm
Center Hole Size (Inch):
1"
Center Hole Size (Decimal Inch):
1.0000"
Center Hole Size (mm):
25.40mm
Face Width (Inch):
5/32"
Face Width (Decimal Inch):
0.1570"
Face Width (mm):
4.00mm
Maximum RPM:
5500.0 rpm
Grade:
Coarse
interval quantity:
10
