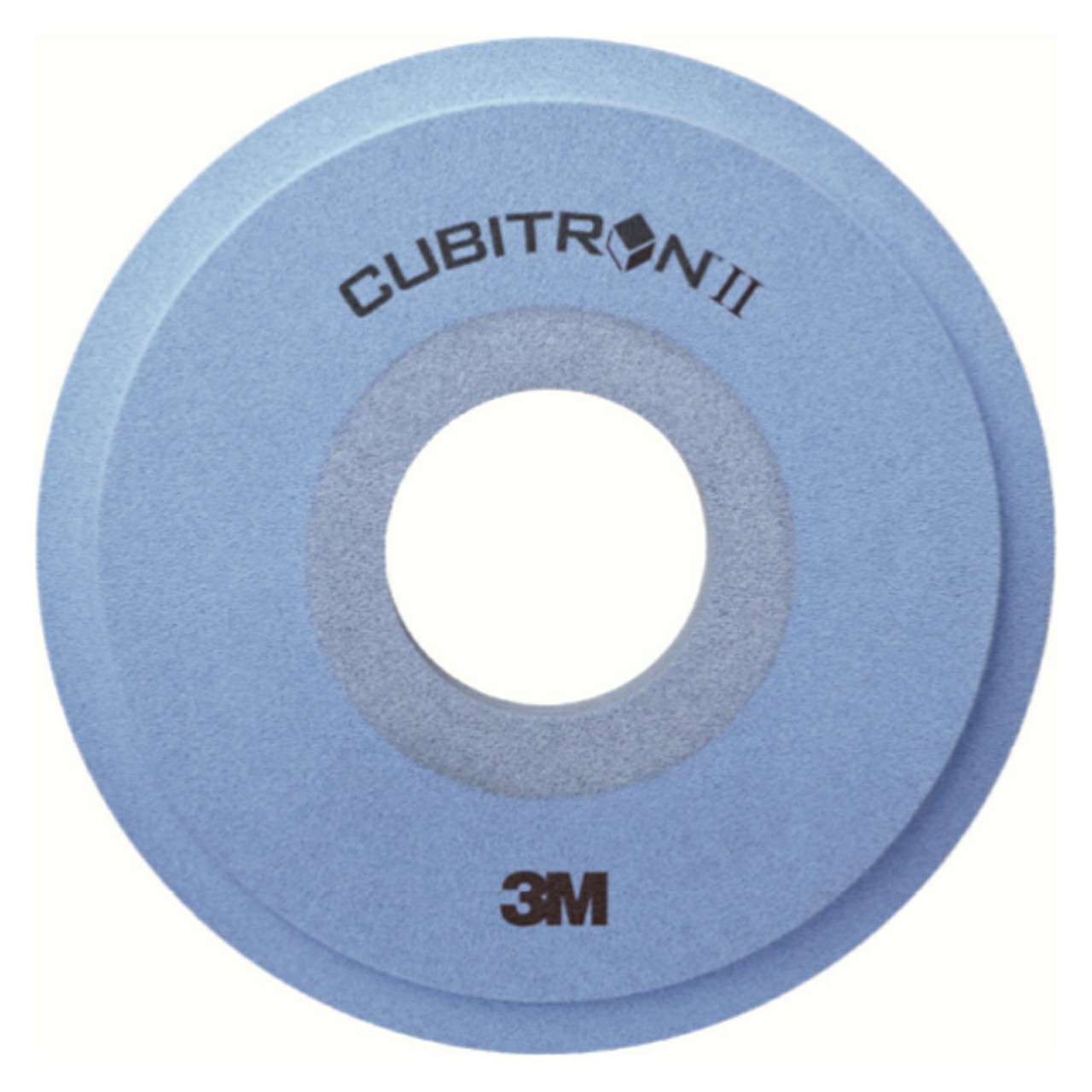

3M High Performance Vitrified Grinding Wheel 91VA is a vitrified bonded grinding wheels with a blend of white aluminum oxide and very low concentration of 3M precision-shaped grain, featuring geometrically defined cutting edges. They're ideal for economical single rib profile grinding of small gear parts.
Features:
- Ideal for use on machines with a lower spindle power
- Designed for single rib profile grinding of small gear parts
- Powered by a white aluminum oxide and 3M precision-shaped grain
Product Specifications
| Manufacturer Part Number | 7100154136 |
| Center Hole Diameter (Inch) | 6.299" |
| Center Hole Diameter (mm) | 160.0mm |
| Overall Diameter (Inch) | 13.78" |
| Overall Diameter (mm) | 350.0mm |
| Overall Thickness (Inch) | 5.906" |
| Overall Thickness (mm) | 150.0mm |
| Wheel Type | T7 |
| Product Form | Wheel |
| Product Number | 91VA |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
interval quantity:
1
Ships:
From Manufacturer
