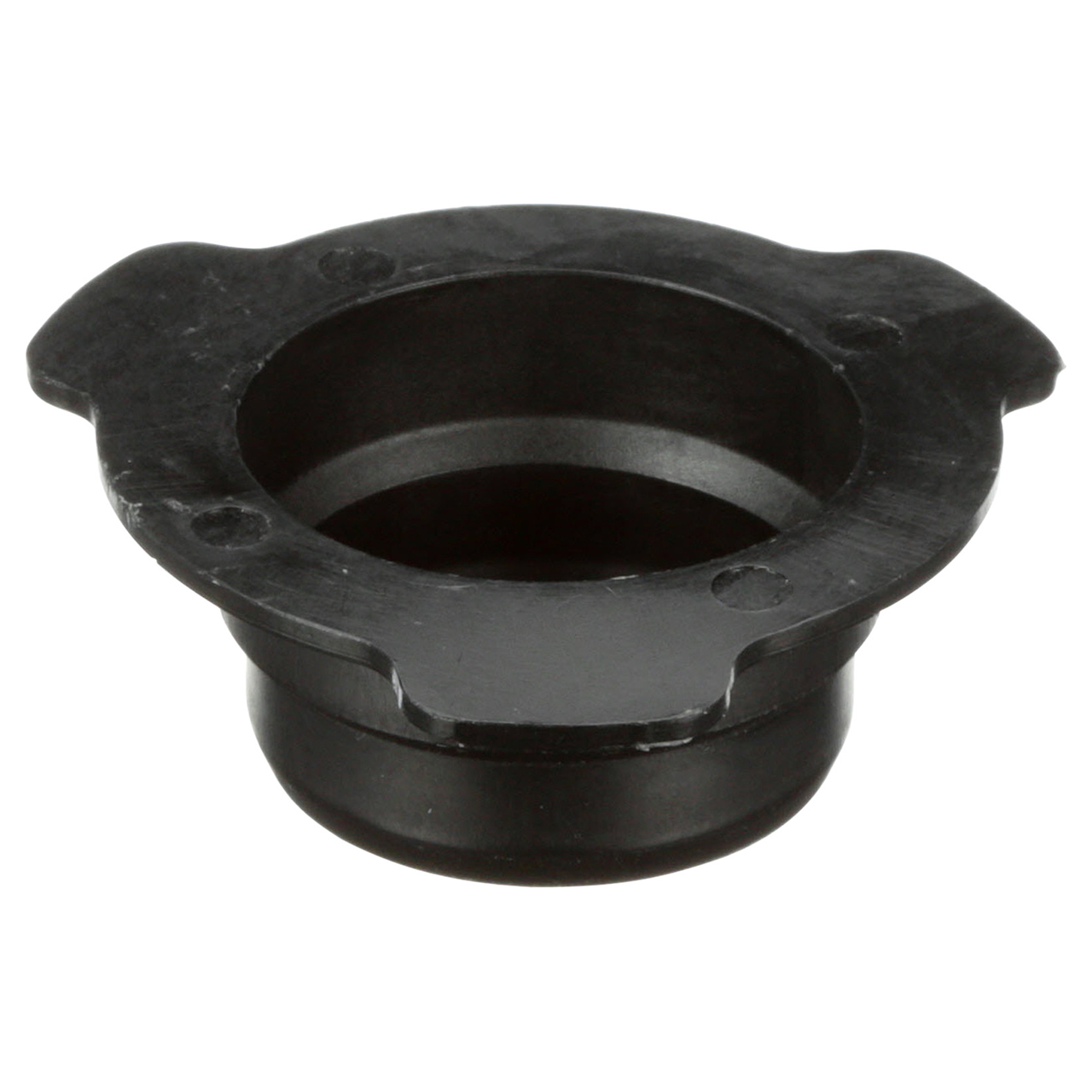

3M 7100168902 | 26232 PPS Sealing Plug

3M PPS Series 2.0 Sealing Plugs are designed specifically for the 3M PPS 2.0 Spray Cup System. Sealing plugs fit into PPS Series 2.0 Lids of all sizes, feature a wide, flat design that creates a stable base for supporting lid and cup assemblies when turned upside down. This lets you keep the lid filters wet, preserving them during temporary sealing and protection of paint and coatings.

Designed specifically for 3M PPS Series 2.0 the next generation of highest performing disposable spray cup system 3M PPS Series 2.0 Sealing Plugs are designed for added performance during temporary sealing and protection of paint and other coatings. Sealing Plugs fit securely into all sizes of PPS Series 2.0 Lids. The outward facing end is wide and flat, forming a stable base. You can simply turn the cup and lid assembly upside down and place it on the Sealing Plug for secure temporary sealing and protection. This method also allows you to keep the 120 or 200 micron filters submerged in fluid, helping preserve them for fewer lid replacements.

The 3M PPS Series 2.0 Spray Cup System is the latest, best-performing disposable spray cup system. The system has been redesigned from the connection to the cup, has been improved in six ways offering a complete disposable spray cup solution for mixing/measuring, filtering, spraying and for temporary sealing and protection of sprayable coatings.

Every PPS Series 2.0 lid features a quarter-turn lid locking system to help reduce paint build-up and possible contamination. Additionally, each lid and liner kit contains a new hard cup which also features universal mixing ratios built into the cup, eliminating the need for separate inserts and helping ensure the most accurate mix possible.

3M PPS Series 2.0 makes it even easier to mix directly in the cup. If you're mixing on a scale, use the “max fill" notation on each cup to fit the maximum amount. Cups include a clear access window to help you see how much material is left while spraying. The window also allows you to hold the liner for easier, cleaner lid removal. This is especially useful during refills or tinting.

3M PPS Series 2.0 Lids feature a domed geometry that allows up to 3 oz (90ml) of material below the filter during on-demand spraying. This reduces sputter and other inconsistencies in spray performance. Lids also feature a wider spout for improved fluid flow. A built-in full-diameter filter delivers the highest quality filtration no assembly needed.

A new adapter design provides a four-point connection and a wider 360 degree platform to ensure a stable, reliable lid-to-spray-gun connection. Larger sealing plugs do more than just seal. For instance, you can turn the cup upside down and use the new sealing plug as a base for temporary sealing and protecting, helping keep the built-in filter wet and reducing the need for replacement lids.

Be sure to consult the paint or coatings manufacturer for the recommended filter mesh size.

Using the right size cup for every repair not only reduces your cost per lid and liner, it can reduce the likelihood of overmixing.

After spraying, the painter can use the sealing plug to seal and protect the paint or coating for later use or simply discard the lid and liner, leaving only the adapter and spray gun to clean. Discard the disposable lid and liner in accordance with local government requirements. Use a small amount of solvent for cleaning the spray gun and the PPS Adapter. Shops using PPS Series 2.0 often experience a 70% reduction in cleaning solvent usage. Most guns can be cleaned with less than 3 oz. of solvent.

Because PPS Series 2.0 is a closed system, you can spray in any orientation to a full 360 degree. This allows the painter to spray consistently at 90 degree to the part, no matter how the part is positioned. It makes material transfer more consistent, limits paint overspray and reduces paint consumption.

Because the painter uses a new disposable lid and liner for each mix, there is less risk of outside contamination. Using a fresh lid and liner with each paint job, rather than washing out reusable components, often improves overall productivity in prep and clean-up time by as much as 50%.

3M invented disposable cups for paint application and will continue to re-invent based on customer's feedback. What customers have said is that trust and confidence in their disposable paint cup system is king. The consistent performance of the 3M PPS System has earned the trust of experts in one of the most important parts of a repair or manufacturing process paint application. PPS Series 2.0 is the culmination of more than 15 years of painter feedback and a true next generation all-in-one disposable painting system that produces cleaner jobs, saves on paint consumption and reduces solvent usage by up to 70%.

Features:

• Designed specifically for all sizes of 3M PPS series 2.0 lids
• Wide, flat design makes a stable base when cups are turned upside down
• Excellent for temporary sealing and protection of coatings
• Keep filters wet for longer life, fewer lid replacements
• Use to seal lid while mixing in paint shakers
